The Apollo Multi Rake Bar Screen is an advanced, chain‑operated mechanical screening system designed to remove large, medium, and fibrous debris from wastewater streams with high reliability and precision. Widely used across municipal sewage treatment plants, industrial effluent treatment units, and raw water intake structures, the system provides an essential pre‑treatment barrier to protect downstream equipment.
Built with a heavy-duty frame and engineered for continuous operation, the Multi Rake Bar Screen combines robust construction, synchronized rake movement, efficient debris lifting, and minimal maintenance. The rake system travels along the full screening depth, ensuring consistent debris removal and preventing clogging, even under fluctuating flow or high‑load conditions.
Its modular construction allows easy customization of bar spacing, channel width, installation angle, and material of construction, making it suitable for a wide range of flow capacities and site constraints.
| No. | Step | Description |
|---|---|---|
| 1 | Influent Entry | Wastewater enters the channel and flows toward the screen. The fixed bars are positioned vertically at an angle of 70°–85° to maximize hydraulic efficiency. |
| 2 | Solid Retention | Solids larger than the pre-selected bar spacing are trapped on the screen surface. |
| 3 | Rake Engagement | Multiple rakes attached to a chain mechanism travel downward and interlock precisely with the bar rack. |
| 4 | Debris Lifting | As the chain rotates, the rakes lift trapped solids upward along the guide tracks. |
| 5 | Debris Discharge | A top-mounted scraper wipes the debris off the rake, dropping it into a conveyor, chute, or waste collection bin. |
| 6 | Return Cycle | Cleaned rakes travel downward through a guided path, ensuring debris does not re-enter the channel. |
| 7 | Continuous Cleaning | Automated control ensures uninterrupted screening without manual intervention. |
| Parameter | Details |
|---|---|
| Screen Type | Vertical or inclined bar screen with fixed bars and moving rakes |
| Installation Angle | 70° to 85° (customizable based on channel design) |
| Bar Spacing | 6 mm to 50 mm depending on application and screening efficiency |
| Channel Width Range | 500 mm to 4000 mm (custom-built available) |
| Channel Depth | Up to 20 meters (depending on structural design) |
| Material Options | SS304 / SS316 / SS316L |
| Rake Type | Solid or fabricated rakes with precision-machined teeth |
| Chain Type | Heavy-duty roller chain or link chain for long service life |
| Drive System | Electric motor with gearbox, torque limiter, and chain drive |
| Power Rating | 0.75 kW to 5.5 kW depending on screen size and load |
| Discharge Height | Customizable to suit conveyor or chute level |
| Control Panel | PLC/automatic control with manual override |
| Operation Mode | Continuous or intermittent (timer or level sensor based) |
| Debris Handling | Top scraper discharge to conveyor / skip / waste bin |
| Feature | Benefit |
|---|---|
| Heavy-duty Construction | Engineered with robust frames and high-strength materials to ensure long-term reliability. |
| Multi-Rake Mechanism | Multiple rakes increase debris capture efficiency and enable faster cleaning cycles. |
| Chain-Driven System | Ensures powerful, controlled, and synchronized movement with minimal wear. |
| High Screening Efficiency | Prevents clogging and maintains uninterrupted water flow even during peak loads. |
| Low Maintenance Design | Reduced moving parts, self-cleaning mechanism, and long-life chains minimize downtime. |
| Customizable Configuration | Bar spacing, width, depth, angle, and materials can be tailored to project requirements. |
| Corrosion-Resistant Materials | Use of SS304/SS316 ensures extended life in corrosive wastewater environments. |
| Automated Control System | PLC-based automation enables fully unattended operation with level/timer controls. |
| Easy Access & Maintenance | Designed with accessibility for maintenance of sprockets, chains, and drive units. |
| Reliable Safety Mechanisms | Equipped with overload protection, emergency stop, and torque limiter for safe operation. |

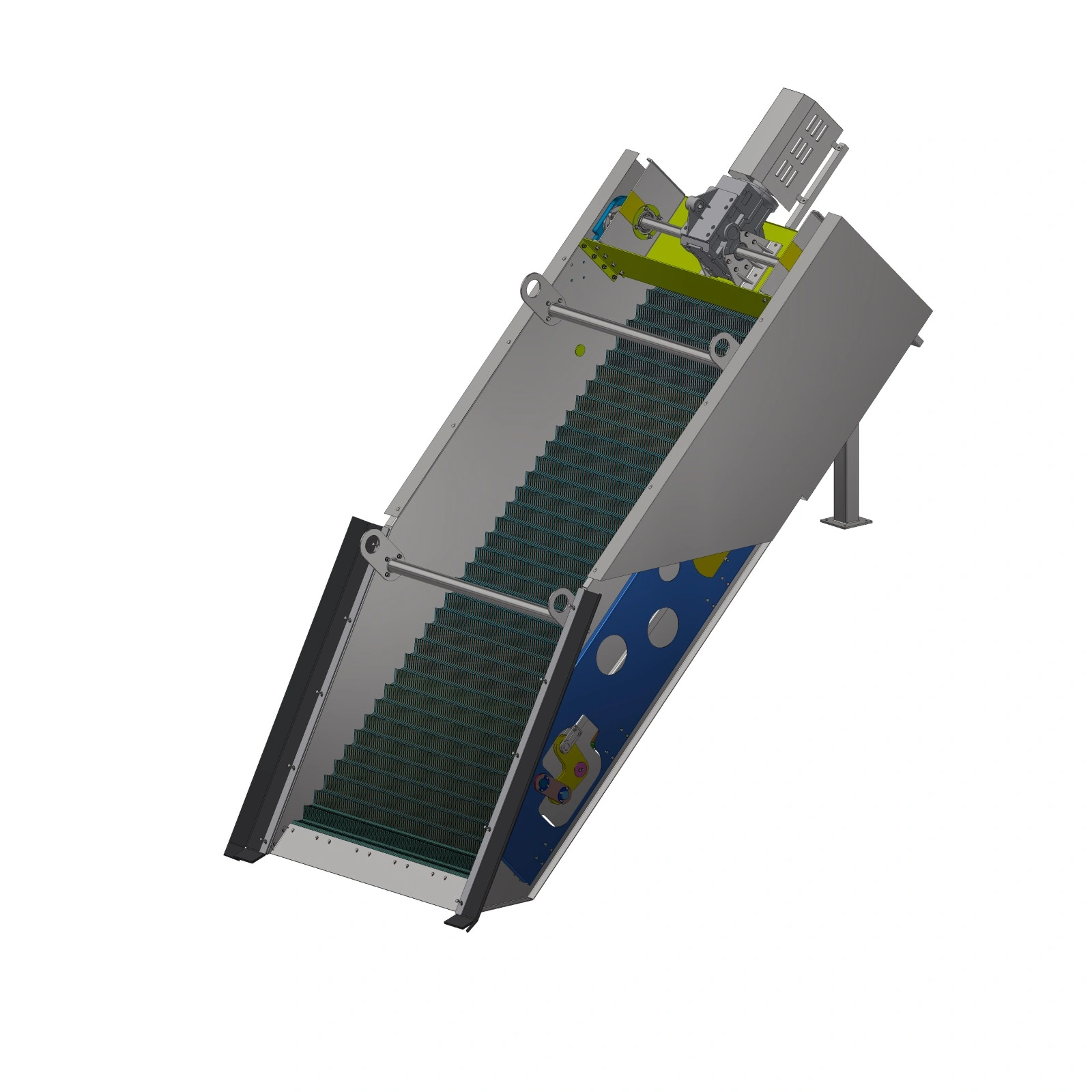

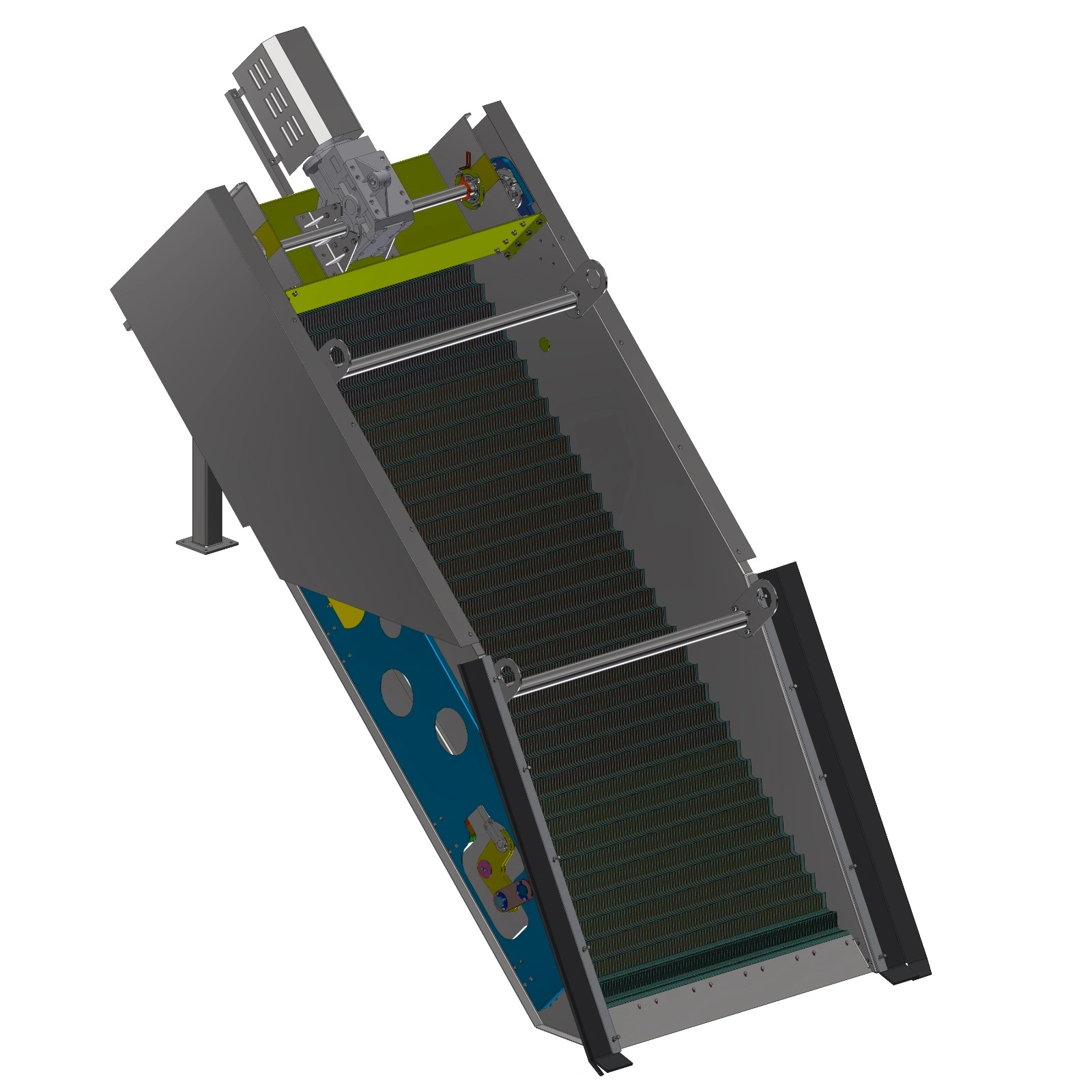

The Apollo Fine Mechanical Screen is a high-performance, precision-engineered fine screening system designed to deliver superior solids separation in both municipal and industrial wastewater treatment applications. Built with an innovative lamella bar configuration featuring alternating fixed and movable bars, the system ensures accurate fine screening with bar spacing ranging from 3 mm to 6 mm.
Installed at an optimized inclination of 45°–55°, the screen maximizes hydraulic efficiency while increasing the effective screening area. Its continuous self-cleaning action, driven by a heavy-duty gear motor, ensures uninterrupted operation without clogging—significantly reducing manual intervention and maintenance requirements.
| No. | Step | Description |
|---|---|---|
| 1 | Influent Flow | Wastewater enters the channel and passes through the inclined screening surface. |
| 2 | Solid Separation | Solids larger than the selected bar spacing are retained on the screen. |
| 3 | Lifting Mechanism | Movable bars lift solids step-by-step toward the discharge point. |
| 4 | Debris Discharge | Collected solids are discharged into a bin, belt conveyor, or screw conveyor. |
| 5 | Self-Cleaning Action | Continuous movement of mobile bars cleans the screen, preventing clogging. |
| Parameter | Specification |
|---|---|
| Bar Spacing | 3 mm to 6 mm (customizable) |
| Channel Width | 400 mm to 2000 mm |
| Installation Angle | 45° to 55° |
| Material of Construction | SS304 / SS316L |
| Drive Mechanism | Heavy-duty Gear Motor |
| Mounting Type | Channel-mounted (drop-in type) |
| Optional Accessories | Belt conveyor, screw conveyor, control panel, inlet feed box |
| Feature | Benefit |
|---|---|
| Inclined Installation (45°–55°) | Improves solids capture efficiency and increases effective screening area. |
| Unique Lamella Bar Design | Fixed and movable bars ensure precise separation and self-cleaning. |
| Fine Bar Spacing (3–6 mm) | Provides high screening accuracy and reduces load on downstream equipment. |
| Self-Cleaning Mechanism | Prevents clogging without external washing systems. |
| Deeper Bar Profile | Reduces roll-back of solids and enhances capture rate. |
| No Submerged Moving Parts | Improves reliability and minimizes corrosion. |
| Robust Construction | Designed for continuous heavy-duty operation. |
| Low Operational Costs | Minimal wear parts reduce service requirements. |
| Flexible Operation | Can run on timer or level-controlled automation. |
| Easy Installation | Bolt-down installation requiring minimal civil work. |
The Apollo Multi Rake Bar Screen is an advanced, chain‑operated mechanical screening system designed to remove large, medium, and fibrous debris from wastewater streams with high reliability and precision. Widely used across municipal sewage treatment plants, industrial effluent treatment units, and raw water intake structures, the system provides an essential pre‑treatment barrier to protect downstream equipment.
Built with a heavy-duty frame and engineered for continuous operation, the Multi Rake Bar Screen combines robust construction, synchronized rake movement, efficient debris lifting, and minimal maintenance. The rake system travels along the full screening depth, ensuring consistent debris removal and preventing clogging, even under fluctuating flow or high‑load conditions.
Its modular construction allows easy customization of bar spacing, channel width, installation angle, and material of construction, making it suitable for a wide range of flow capacities and site constraints.
| No. | Step | Description |
|---|---|---|
| 1 | Influent Entry | Wastewater enters the channel and flows toward the screen. The fixed bars are positioned vertically at an angle of 70°–85° to maximize hydraulic efficiency. |
| 2 | Solid Retention | Solids larger than the pre-selected bar spacing are trapped on the screen surface. |
| 3 | Rake Engagement | Multiple rakes attached to a chain mechanism travel downward and interlock precisely with the bar rack. |
| 4 | Debris Lifting | As the chain rotates, the rakes lift trapped solids upward along the guide tracks. |
| 5 | Debris Discharge | A top-mounted scraper wipes the debris off the rake, dropping it into a conveyor, chute, or waste collection bin. |
| 6 | Return Cycle | Cleaned rakes travel downward through a guided path, ensuring debris does not re-enter the channel. |
| 7 | Continuous Cleaning | Automated control ensures uninterrupted screening without manual intervention. |
| Parameter | Details |
|---|---|
| Screen Type | Vertical or inclined bar screen with fixed bars and moving rakes |
| Installation Angle | 70° to 85° (customizable based on channel design) |
| Bar Spacing | 6 mm to 50 mm depending on application and screening efficiency |
| Channel Width Range | 500 mm to 4000 mm (custom-built available) |
| Channel Depth | Up to 20 meters (depending on structural design) |
| Material Options | SS304 / SS316 / SS316L |
| Rake Type | Solid or fabricated rakes with precision-machined teeth |
| Chain Type | Heavy-duty roller chain or link chain for long service life |
| Drive System | Electric motor with gearbox, torque limiter, and chain drive |
| Power Rating | 0.75 kW to 5.5 kW depending on screen size and load |
| Discharge Height | Customizable to suit conveyor or chute level |
| Control Panel | PLC/automatic control with manual override |
| Operation Mode | Continuous or intermittent (timer or level sensor based) |
| Debris Handling | Top scraper discharge to conveyor / skip / waste bin |
| Feature | Benefit |
|---|---|
| Heavy-duty Construction | Engineered with robust frames and high-strength materials to ensure long-term reliability. |
| Multi-Rake Mechanism | Multiple rakes increase debris capture efficiency and enable faster cleaning cycles. |
| Chain-Driven System | Ensures powerful, controlled, and synchronized movement with minimal wear. |
| High Screening Efficiency | Prevents clogging and maintains uninterrupted water flow even during peak loads. |
| Low Maintenance Design | Reduced moving parts, self-cleaning mechanism, and long-life chains minimize downtime. |
| Customizable Configuration | Bar spacing, width, depth, angle, and materials can be tailored to project requirements. |
| Corrosion-Resistant Materials | Use of SS304/SS316 ensures extended life in corrosive wastewater environments. |
| Automated Control System | PLC-based automation enables fully unattended operation with level/timer controls. |
| Easy Access & Maintenance | Designed with accessibility for maintenance of sprockets, chains, and drive units. |
| Reliable Safety Mechanisms | Equipped with overload protection, emergency stop, and torque limiter for safe operation. |
The Manual Bar Screen is a simple, robust, and cost-effective primary screening solution used for removing large floating solids and debris from wastewater channels. Designed for small to medium-flow installations, this fixed bar screen is installed at an inclined angle within the channel and is manually raked at regular intervals. With no mechanical components and minimal maintenance requirement, it provides an economical screening option for sewage treatment plants, pumping stations, and stormwater drainage systems.
Wastewater flows through the inclined bars of the screen, where large solids, rags, plastics, and debris are trapped on the upstream face. As screenings accumulate, the operator manually cleans the bars using a rake or hook. The captured material is then removed and disposed of at designated points. This manual cleaning mechanism ensures uninterrupted flow while preventing clogging of downstream units such as pumps and treatment processes.
| Parameter | Specification |
|---|---|
| Bar Spacing | 10 mm to 70 mm |
| Screen Width | 300 mm to 1500 mm |
| Material of Construction | SS304 / SS316L |
| Inclination Angle | 45°–70° |
| Installation Method | Fixed in channel |
| Operation | Manual raking |
| Frame Design | Single or double frame based on channel width |
| Channel Depth Compatibility | Customizable as per site |
| Key Features | Benefits |
|---|---|
| No mechanical or moving parts | Highly reliable and virtually maintenance-free |
| Rugged stainless-steel construction | Long service life with excellent corrosion resistance |
| Simple, fixed design | Easy installation and low operational complexity |
| Wide range of bar spacing | Suitable for coarse screening in diverse applications |
| Manual raking operation | No electricity required; highly cost-effective |
| Flexible installation inclination | Optimized flow-through and reduced headloss |
The Box-Type Lifting Screen is a robust, heavy-duty screening solution designed for wastewater channels with high solid loads. Featuring a box-shaped perforated bucket, this screen efficiently captures and lifts large volumes of solids from the flow. Constructed from high-quality stainless steel and equipped with manual lifting mechanisms, it is suitable for large municipal STPs, sewage pumping stations, and industrial effluent channels. Its sturdy design ensures long-term reliability, even under challenging conditions.
Wastewater passes through vertical bars where large solids and debris are retained. These solids are collected in the box-shaped perforated bucket at the base of the screen. Operators lift the screen using a manual winch or chain pulley system, raising the bucket along with the trapped solids. Once lifted above the channel, the perforations allow excess water to drain while retaining solids, which are then emptied at a designated disposal point. This intermittent lifting method ensures efficient debris removal, prevents clogging, and protects downstream equipment.
| Parameter | Specification |
|---|---|
| Bar Spacing | 6 mm to 50 mm |
| Channel Width | 800 mm to 3000 mm |
| Inclination | 90° (Vertical) |
| Material of Construction | SS304 / SS316L |
| Operation | Manual lifting via winch or chain pulley |
| Bucket Type | Large-volume box-type with perforations |
| Duty Classification | Heavy-duty screening |
| Screen Type | Vertical lifting screen |
| Flow Capacity | Medium to high flow rates, customizable per site |
| Key Features | Benefits |
|---|---|
| Heavy-duty box-shaped bucket | Handles high solid loads efficiently |
| Perforated design | Allows water drainage while retaining solids |
| Manual lifting via winch or pulley | No electricity needed; simple operation |
| Stainless-steel construction | Corrosion-resistant and durable |
| Suitable for wide channels | Provides high coverage for large installations |
| Robust design | Ensures long service life and minimal maintenance |
| Intermittent cleaning operation | Reduces risk of clogging and protects downstream equipment |
The J-Type Lifting Screen is a manually operated screening system designed for medium-flow wastewater channels where mechanical or automated screens are not required. Its unique J-shaped bucket arrangement allows effective collection, lifting, and removal of screenings from the channel. Built with stainless-steel construction and guided through brass bushes and steel rollers, this lifting screen offers a reliable, low-maintenance, and cost-effective solution for municipal STPs, sewage pumping stations, and industrial effluent treatment plants.
Wastewater flows through the vertical bars of the screen, where floating and suspended debris is retained. The accumulated screenings gradually settle in the J-shaped bucket installed at the lower section of the screen.
At desired intervals, operators lift the screen using a chain pulley block or manual winch system. As the screen assembly rises, the J-bucket collects and carries the trapped solids above the channel. The screenings are then manually emptied at a designated disposal area.
This lifting mechanism ensures efficient cleaning, minimal manual contact with debris, and smooth screen operation even under varying flow conditions.
| Parameter | Specification |
|---|---|
| Bar Spacing | 6 mm to 50 mm |
| Channel Width | 600 mm to 3000 mm |
| Inclination | 90° (Vertical) |
| Material of Construction | SS304 / SS316L |
| Lifting Mechanism | Manual winch or chain pulley block |
| Guides | Brass bushes and steel rollers |
| Screen Type | J-shaped bucket lifting screen |
| Operation | Manual lifting and debris removal |
| Duty Classification | Medium-duty screening |
| Key Features | Benefits |
|---|---|
| J-shaped bucket for debris collection | Ensures efficient and clean removal of screenings |
| Manual lifting with winch or pulley | No power consumption; highly economical |
| Vertical screen orientation | Space-saving and suitable for deep or narrow channels |
| Brass bushes and steel rollers | Smooth, low-friction operation and long service life |
| Stainless-steel construction | Excellent corrosion resistance and long-term durability |
| Medium-duty design | Suitable for municipal and industrial wastewater |
| Easy installation & maintenance | Minimal downtime and simplified cleaning |
The Apollo Parabolic Screen is a high-efficiency fine screening solution designed for wastewater and industrial effluent applications that require precise solid-liquid separation. Ideal for low-flow conditions, it can remove up to 90% of suspended solids. Constructed from durable SS-304 / SS-316L, it features non-submerged moving parts and a wedge wire screen for long-term reliability, minimal maintenance, and consistent high performance.
It is suitable for small STPs, industrial effluent systems, food and dairy processing plants, chemical industries, and other processes demanding fine filtration.
Wastewater or effluent enters the parabolic screen, flowing across a welded wedge wire surface. Suspended solids larger than the slot size (as fine as 0.5 mm) are captured on the screen surface. The parabolic shape ensures uniform flow distribution, reducing turbulence and low-velocity zones, which improves screening efficiency. Non-submerged moving parts prevent corrosion and erosion, while the captured solids slide downward or are easily removed during maintenance.
This design ensures high solids removal efficiency without interrupting flow, even under low-flow conditions.
| Parameter | Specification |
|---|---|
| Screen Type | Parabolic Fine Screen |
| Screen Slot Size | 0.5 mm (capable of fine screening) |
| Material of Construction | SS-304 / SS-316L |
| Flow Conditions | Low-flow, medium-flow streams |
| Solids Removal Efficiency | Up to 90% |
| Operation | Non-submerged moving parts; low maintenance |
| Installation | Bolt-down with flange couplings |
| Inspection & Cleaning | Large removable rear cover for easy access |
| Design Feature | Optimized parabolic shape for uniform flow distribution |
| Key Features | Benefits |
|---|---|
| Fine Screening (0.5 mm) | Removes small suspended solids for high-quality effluent |
| Non-Submerged Moving Parts | Reduces corrosion and erosion; increases lifespan |
| Wedge Wire Screen | High filtration rates with non-clogging openings |
| Efficient Solids Removal | Captures up to 90% of suspended solids |
| Maintenance-Free Construction | Durable SS-304/SS-316L ensures minimal maintenance |
| Optimized Separation & Flow | Uniform flow distribution enhances screening efficiency |
| Easy Installation & Operation | Simple bolt-down installation with easy inspection access |
The Apollo Flat Belt Conveyor System is a heavy-duty, reliable solution for transporting screenings, debris, and solid waste from mechanical screens to designated disposal points. Designed for STPs, ETPs, and industrial wastewater plants, it ensures seamless transfer of materials directly from the discharge chute to collection areas. Its robust construction, customizable design, and optional safety features make it suitable for a wide range of applications, providing efficient and uninterrupted material handling.
| Parameter | Specification |
|---|---|
| Belt Type | Rubber / EPDM |
| Belt Width | 600 mm to 1000 mm |
| Conveyor Length | 1.2 m to 15 m (customizable) |
| Frame Material | Mild Steel (painted) / SS304 / SS316 |
| Drive | Gear Motor (~30 RPM standard output) |
| Arrangement | Chain-type for added strength |
| Tensioning System | Ensures smooth operation |
| Safety Options | Canopy (Dog Box), Pull Cord Switch |
| Standards | IS / Apollo-approved specifications |
| Feature | Benefit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heavy-duty MSEP or SS frame | Long service life and structural stability | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Durable rubber/EPDM belt with side skirting | Smooth transport, prevents material spillage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Customizable belt width & length | Flexibility for different installations and channel dimensions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gear motor drive (~30 RPM) | Reliable and consistent material conveyance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chain-type arrangement | Strengthens belt system for heavy loads | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parameter | Specification |
|---|---|
| Belt Type | Rubber / EPDM |
| Belt Width | 600 mm to 1000 mm |
| Conveyor Length | 1.2 m to 15 m (customizable) |
| Frame Material | Mild Steel (painted) / SS304 / SS316 |
| Drive | Gear Motor (~30 RPM standard output) |
| Arrangement | Chain-type for added strength |
| Tensioning System | Ensures smooth operation |
| Safety Options | Canopy (Dog Box), Pull Cord Switch |
| Standards | IS / Apollo-approved specifications |
| Feature | Benefit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heavy-duty MSEP or SS frame | Long service life and structural stability | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Durable rubber/EPDM belt with side skirting | Smooth transport, prevents material spillage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Customizable belt width & length | Flexibility for different installations and channel dimensions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gear motor drive (~30 RPM) | Reliable and consistent material conveyance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chain-type arrangement | Strengthens belt system for heavy loads | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| No. | Step | Description |
|---|---|---|
| 1 | Influent Entry | Wastewater enters the channel and flows toward the screen. The fixed bars are positioned vertically at an angle of 70°–85° to maximize hydraulic efficiency. |
| 2 | Solid Retention | Solids larger than the pre-selected bar spacing are trapped on the screen surface. |
| 3 | Rake Engagement | Multiple rakes attached to a chain mechanism travel downward and interlock precisely with the bar rack. |
| 4 | Debris Lifting | As the chain rotates, the rakes lift trapped solids upward along the guide tracks. |
| 5 | Debris Discharge | A top-mounted scraper wipes the debris off the rake, dropping it into a conveyor, chute, or waste collection bin. |
| 6 | Return Cycle | Cleaned rakes travel downward through a guided path, ensuring debris does not re-enter the channel. |
| 7 | Continuous Cleaning | Automated control ensures uninterrupted screening without manual intervention. |
| Parameter | Details |
|---|---|
| Screen Type | Vertical or inclined bar screen with fixed bars and moving rakes |
| Installation Angle | 70° to 85° (customizable based on channel design) |
| Bar Spacing | 6 mm to 50 mm depending on application and screening efficiency |
| Channel Width Range | 500 mm to 4000 mm (custom-built available) |
| Channel Depth | Up to 20 meters (depending on structural design) |
| Material Options | SS304 / SS316 / SS316L |
| Rake Type | Solid or fabricated rakes with precision-machined teeth |
| Chain Type | Heavy-duty roller chain or link chain for long service life |
| Drive System | Electric motor with gearbox, torque limiter, and chain drive |
| Power Rating | 0.75 kW to 5.5 kW depending on screen size and load |
| Discharge Height | Customizable to suit conveyor or chute level |
| Control Panel | PLC/automatic control with manual override |
| Operation Mode | Continuous or intermittent (timer or level sensor based) |
| Debris Handling | Top scraper discharge to conveyor / skip / waste bin |
| Feature | Benefit |
|---|---|
| Heavy-duty Construction | Engineered with robust frames and high-strength materials to ensure long-term reliability. |
| Multi-Rake Mechanism | Multiple rakes increase debris capture efficiency and enable faster cleaning cycles. |
| Chain-Driven System | Ensures powerful, controlled, and synchronized movement with minimal wear. |
| High Screening Efficiency | Prevents clogging and maintains uninterrupted water flow even during peak loads. |
| Low Maintenance Design | Reduced moving parts, self-cleaning mechanism, and long-life chains minimize downtime. |
| Customizable Configuration | Bar spacing, width, depth, angle, and materials can be tailored to project requirements. |
| Corrosion-Resistant Materials | Use of SS304/SS316 ensures extended life in corrosive wastewater environments. |
| Automated Control System | PLC-based automation enables fully unattended operation with level/timer controls. |
| Easy Access & Maintenance | Designed with accessibility for maintenance of sprockets, chains, and drive units. |
| Reliable Safety Mechanisms | Equipped with overload protection, emergency stop, and torque limiter for safe operation. |
The Apollo Fine Mechanical Screen is a high-performance, precision-engineered fine screening system designed to deliver superior solids separation in both municipal and industrial wastewater treatment applications. Built with an innovative lamella bar configuration featuring alternating fixed and movable bars, the system ensures accurate fine screening with bar spacing ranging from 3 mm to 6 mm.
Installed at an optimized inclination of 45°–55°, the screen maximizes hydraulic efficiency while increasing the effective screening area. Its continuous self-cleaning action, driven by a heavy-duty gear motor, ensures uninterrupted operation without clogging—significantly reducing manual intervention and maintenance requirements.
| No. | Step | Description |
|---|---|---|
| 1 | Influent Flow | Wastewater enters the channel and passes through the inclined screening surface. |
| 2 | Solid Separation | Solids larger than the selected bar spacing are retained on the screen. |
| 3 | Lifting Mechanism | Movable bars lift solids step-by-step toward the discharge point. |
| 4 | Debris Discharge | Collected solids are discharged into a bin, belt conveyor, or screw conveyor. |
| 5 | Self-Cleaning Action | Continuous movement of mobile bars cleans the screen, preventing clogging. |
| Parameter | Specification |
|---|---|
| Bar Spacing | 3 mm to 6 mm (customizable) |
| Channel Width | 400 mm to 2000 mm |
| Installation Angle | 45° to 55° |
| Material of Construction | SS304 / SS316L |
| Drive Mechanism | Heavy-duty Gear Motor |
| Mounting Type | Channel-mounted (drop-in type) |
| Optional Accessories | Belt conveyor, screw conveyor, control panel, inlet feed box |
| Feature | Benefit |
|---|---|
| Inclined Installation (45°–55°) | Improves solids capture efficiency and increases effective screening area. |
| Unique Lamella Bar Design | Fixed and movable bars ensure precise separation and self-cleaning. |
| Fine Bar Spacing (3–6 mm) | Provides high screening accuracy and reduces load on downstream equipment. |
| Self-Cleaning Mechanism | Prevents clogging without external washing systems. |
| Deeper Bar Profile | Reduces roll-back of solids and enhances capture rate. |
| No Submerged Moving Parts | Improves reliability and minimizes corrosion. |
| Robust Construction | Designed for continuous heavy-duty operation. |
| Low Operational Costs | Minimal wear parts reduce service requirements. |
| Flexible Operation | Can run on timer or level-controlled automation. |
| Easy Installation | Bolt-down installation requiring minimal civil work. |
The Apollo Multi Rake Bar Screen is an advanced, chain‑operated mechanical screening system designed to remove large, medium, and fibrous debris from wastewater streams with high reliability and precision. Widely used across municipal sewage treatment plants, industrial effluent treatment units, and raw water intake structures, the system provides an essential pre‑treatment barrier to protect downstream equipment.
Built with a heavy-duty frame and engineered for continuous operation, the Multi Rake Bar Screen combines robust construction, synchronized rake movement, efficient debris lifting, and minimal maintenance. The rake system travels along the full screening depth, ensuring consistent debris removal and preventing clogging, even under fluctuating flow or high‑load conditions.
Its modular construction allows easy customization of bar spacing, channel width, installation angle, and material of construction, making it suitable for a wide range of flow capacities and site constraints.
| No. | Step | Description |
|---|---|---|
| 1 | Influent Entry | Wastewater enters the channel and flows toward the screen. The fixed bars are positioned vertically at an angle of 70°–85° to maximize hydraulic efficiency. |
| 2 | Solid Retention | Solids larger than the pre-selected bar spacing are trapped on the screen surface. |
| 3 | Rake Engagement | Multiple rakes attached to a chain mechanism travel downward and interlock precisely with the bar rack. |
| 4 | Debris Lifting | As the chain rotates, the rakes lift trapped solids upward along the guide tracks. |
| 5 | Debris Discharge | A top-mounted scraper wipes the debris off the rake, dropping it into a conveyor, chute, or waste collection bin. |
| 6 | Return Cycle | Cleaned rakes travel downward through a guided path, ensuring debris does not re-enter the channel. |
| 7 | Continuous Cleaning | Automated control ensures uninterrupted screening without manual intervention. |
| Parameter | Details |
|---|---|
| Screen Type | Vertical or inclined bar screen with fixed bars and moving rakes |
| Installation Angle | 70° to 85° (customizable based on channel design) |
| Bar Spacing | 6 mm to 50 mm depending on application and screening efficiency |
| Channel Width Range | 500 mm to 4000 mm (custom-built available) |
| Channel Depth | Up to 20 meters (depending on structural design) |
| Material Options | SS304 / SS316 / SS316L |
| Rake Type | Solid or fabricated rakes with precision-machined teeth |
| Chain Type | Heavy-duty roller chain or link chain for long service life |
| Drive System | Electric motor with gearbox, torque limiter, and chain drive |
| Power Rating | 0.75 kW to 5.5 kW depending on screen size and load |
| Discharge Height | Customizable to suit conveyor or chute level |
| Control Panel | PLC/automatic control with manual override |
| Operation Mode | Continuous or intermittent (timer or level sensor based) |
| Debris Handling | Top scraper discharge to conveyor / skip / waste bin |
| Feature | Benefit |
|---|---|
| Heavy-duty Construction | Engineered with robust frames and high-strength materials to ensure long-term reliability. |
| Multi-Rake Mechanism | Multiple rakes increase debris capture efficiency and enable faster cleaning cycles. |
| Chain-Driven System | Ensures powerful, controlled, and synchronized movement with minimal wear. |
| High Screening Efficiency | Prevents clogging and maintains uninterrupted water flow even during peak loads. |
| Low Maintenance Design | Reduced moving parts, self-cleaning mechanism, and long-life chains minimize downtime. |
| Customizable Configuration | Bar spacing, width, depth, angle, and materials can be tailored to project requirements. |
| Corrosion-Resistant Materials | Use of SS304/SS316 ensures extended life in corrosive wastewater environments. |
| Automated Control System | PLC-based automation enables fully unattended operation with level/timer controls. |
| Easy Access & Maintenance | Designed with accessibility for maintenance of sprockets, chains, and drive units. |
| Reliable Safety Mechanisms | Equipped with overload protection, emergency stop, and torque limiter for safe operation. |
The Manual Bar Screen is a simple, robust, and cost-effective primary screening solution used for removing large floating solids and debris from wastewater channels. Designed for small to medium-flow installations, this fixed bar screen is installed at an inclined angle within the channel and is manually raked at regular intervals. With no mechanical components and minimal maintenance requirement, it provides an economical screening option for sewage treatment plants, pumping stations, and stormwater drainage systems.
Wastewater flows through the inclined bars of the screen, where large solids, rags, plastics, and debris are trapped on the upstream face. As screenings accumulate, the operator manually cleans the bars using a rake or hook. The captured material is then removed and disposed of at designated points. This manual cleaning mechanism ensures uninterrupted flow while preventing clogging of downstream units such as pumps and treatment processes.
| Parameter | Specification |
|---|---|
| Bar Spacing | 10 mm to 70 mm |
| Screen Width | 300 mm to 1500 mm |
| Material of Construction | SS304 / SS316L |
| Inclination Angle | 45°–70° |
| Installation Method | Fixed in channel |
| Operation | Manual raking |
| Frame Design | Single or double frame based on channel width |
| Channel Depth Compatibility | Customizable as per site |
| Key Features | Benefits |
|---|---|
| No mechanical or moving parts | Highly reliable and virtually maintenance-free |
| Rugged stainless-steel construction | Long service life with excellent corrosion resistance |
| Simple, fixed design | Easy installation and low operational complexity |
| Wide range of bar spacing | Suitable for coarse screening in diverse applications |
| Manual raking operation | No electricity required; highly cost-effective |
| Flexible installation inclination | Optimized flow-through and reduced headloss |
The Box-Type Lifting Screen is a robust, heavy-duty screening solution designed for wastewater channels with high solid loads. Featuring a box-shaped perforated bucket, this screen efficiently captures and lifts large volumes of solids from the flow. Constructed from high-quality stainless steel and equipped with manual lifting mechanisms, it is suitable for large municipal STPs, sewage pumping stations, and industrial effluent channels. Its sturdy design ensures long-term reliability, even under challenging conditions.
Wastewater passes through vertical bars where large solids and debris are retained. These solids are collected in the box-shaped perforated bucket at the base of the screen. Operators lift the screen using a manual winch or chain pulley system, raising the bucket along with the trapped solids. Once lifted above the channel, the perforations allow excess water to drain while retaining solids, which are then emptied at a designated disposal point. This intermittent lifting method ensures efficient debris removal, prevents clogging, and protects downstream equipment.
| Parameter | Specification |
|---|---|
| Bar Spacing | 6 mm to 50 mm |
| Channel Width | 800 mm to 3000 mm |
| Inclination | 90° (Vertical) |
| Material of Construction | SS304 / SS316L |
| Operation | Manual lifting via winch or chain pulley |
| Bucket Type | Large-volume box-type with perforations |
| Duty Classification | Heavy-duty screening |
| Screen Type | Vertical lifting screen |
| Flow Capacity | Medium to high flow rates, customizable per site |
| Key Features | Benefits |
|---|---|
| Heavy-duty box-shaped bucket | Handles high solid loads efficiently |
| Perforated design | Allows water drainage while retaining solids |
| Manual lifting via winch or pulley | No electricity needed; simple operation |
| Stainless-steel construction | Corrosion-resistant and durable |
| Suitable for wide channels | Provides high coverage for large installations |
| Robust design | Ensures long service life and minimal maintenance |
| Intermittent cleaning operation | Reduces risk of clogging and protects downstream equipment |
The J-Type Lifting Screen is a manually operated screening system designed for medium-flow wastewater channels where mechanical or automated screens are not required. Its unique J-shaped bucket arrangement allows effective collection, lifting, and removal of screenings from the channel. Built with stainless-steel construction and guided through brass bushes and steel rollers, this lifting screen offers a reliable, low-maintenance, and cost-effective solution for municipal STPs, sewage pumping stations, and industrial effluent treatment plants.
Wastewater flows through the vertical bars of the screen, where floating and suspended debris is retained. The accumulated screenings gradually settle in the J-shaped bucket installed at the lower section of the screen.
At desired intervals, operators lift the screen using a chain pulley block or manual winch system. As the screen assembly rises, the J-bucket collects and carries the trapped solids above the channel. The screenings are then manually emptied at a designated disposal area.
This lifting mechanism ensures efficient cleaning, minimal manual contact with debris, and smooth screen operation even under varying flow conditions.
| Parameter | Specification |
|---|---|
| Bar Spacing | 6 mm to 50 mm |
| Channel Width | 600 mm to 3000 mm |
| Inclination | 90° (Vertical) |
| Material of Construction | SS304 / SS316L |
| Lifting Mechanism | Manual winch or chain pulley block |
| Guides | Brass bushes and steel rollers |
| Screen Type | J-shaped bucket lifting screen |
| Operation | Manual lifting and debris removal |
| Duty Classification | Medium-duty screening |
| Key Features | Benefits |
|---|---|
| J-shaped bucket for debris collection | Ensures efficient and clean removal of screenings |
| Manual lifting with winch or pulley | No power consumption; highly economical |
| Vertical screen orientation | Space-saving and suitable for deep or narrow channels |
| Brass bushes and steel rollers | Smooth, low-friction operation and long service life |
| Stainless-steel construction | Excellent corrosion resistance and long-term durability |
| Medium-duty design | Suitable for municipal and industrial wastewater |
| Easy installation & maintenance | Minimal downtime and simplified cleaning |
The Apollo Parabolic Screen is a high-efficiency fine screening solution designed for wastewater and industrial effluent applications that require precise solid-liquid separation. Ideal for low-flow conditions, it can remove up to 90% of suspended solids. Constructed from durable SS-304 / SS-316L, it features non-submerged moving parts and a wedge wire screen for long-term reliability, minimal maintenance, and consistent high performance.
It is suitable for small STPs, industrial effluent systems, food and dairy processing plants, chemical industries, and other processes demanding fine filtration.
Wastewater or effluent enters the parabolic screen, flowing across a welded wedge wire surface. Suspended solids larger than the slot size (as fine as 0.5 mm) are captured on the screen surface. The parabolic shape ensures uniform flow distribution, reducing turbulence and low-velocity zones, which improves screening efficiency. Non-submerged moving parts prevent corrosion and erosion, while the captured solids slide downward or are easily removed during maintenance.
This design ensures high solids removal efficiency without interrupting flow, even under low-flow conditions.
| Parameter | Specification |
|---|---|
| Screen Type | Parabolic Fine Screen |
| Screen Slot Size | 0.5 mm (capable of fine screening) |
| Material of Construction | SS-304 / SS-316L |
| Flow Conditions | Low-flow, medium-flow streams |
| Solids Removal Efficiency | Up to 90% |
| Operation | Non-submerged moving parts; low maintenance |
| Installation | Bolt-down with flange couplings |
| Inspection & Cleaning | Large removable rear cover for easy access |
| Design Feature | Optimized parabolic shape for uniform flow distribution |
| Key Features | Benefits |
|---|---|
| Fine Screening (0.5 mm) | Removes small suspended solids for high-quality effluent |
| Non-Submerged Moving Parts | Reduces corrosion and erosion; increases lifespan |
| Wedge Wire Screen | High filtration rates with non-clogging openings |
| Efficient Solids Removal | Captures up to 90% of suspended solids |
| Maintenance-Free Construction | Durable SS-304/SS-316L ensures minimal maintenance |
| Optimized Separation & Flow | Uniform flow distribution enhances screening efficiency |
| Easy Installation & Operation | Simple bolt-down installation with easy inspection access |
The Apollo Flat Belt Conveyor System is a heavy-duty, reliable solution for transporting screenings, debris, and solid waste from mechanical screens to designated disposal points. Designed for STPs, ETPs, and industrial wastewater plants, it ensures seamless transfer of materials directly from the discharge chute to collection areas. Its robust construction, customizable design, and optional safety features make it suitable for a wide range of applications, providing efficient and uninterrupted material handling.
| Parameter | Specification |
|---|---|
| Belt Type | Rubber / EPDM |
| Belt Width | 600 mm to 1000 mm |
| Conveyor Length | 1.2 m to 15 m (customizable) |
| Frame Material | Mild Steel (painted) / SS304 / SS316 |
| Drive | Gear Motor (~30 RPM standard output) |
| Arrangement | Chain-type for added strength |
| Tensioning System | Ensures smooth operation |
| Safety Options | Canopy (Dog Box), Pull Cord Switch |
| Standards | IS / Apollo-approved specifications |
| Feature | Benefit | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heavy-duty MSEP or SS frame | Long service life and structural stability | ||||||||||||||||||||||||||||||
| Durable rubber/EPDM belt with side skirting | Smooth transport, prevents material spillage | ||||||||||||||||||||||||||||||
| Customizable belt width & length | Flexibility for different installations and channel dimensions | ||||||||||||||||||||||||||||||
| Gear motor drive (~30 RPM) | Reliable and consistent material conveyance | ||||||||||||||||||||||||||||||
| Chain-type arrangement | Strengthens belt system for heavy loads | ||||||||||||||||||||||||||||||
| Parameter | Specification |
|---|---|
| Belt Type | Rubber / EPDM |
| Belt Width | 600 mm to 1000 mm |
| Conveyor Length | 1.2 m to 15 m (customizable) |
| Frame Material | Mild Steel (painted) / SS304 / SS316 |
| Drive | Gear Motor (~30 RPM standard output) |
| Arrangement | Chain-type for added strength |
| Tensioning System | Ensures smooth operation |
| Safety Options | Canopy (Dog Box), Pull Cord Switch |
| Standards | IS / Apollo-approved specifications |
| Feature | Benefit |
|---|---|
| Heavy-duty MSEP or SS frame | Long service life and structural stability |
| Durable rubber/EPDM belt with side skirting | Smooth transport, prevents material spillage |
| Customizable belt width & length | Flexibility for different installations and channel dimensions |
| Gear motor drive (~30 RPM) | Reliable and consistent material conveyance |
| Chain-type arrangement | Strengthens belt system for heavy loads |
