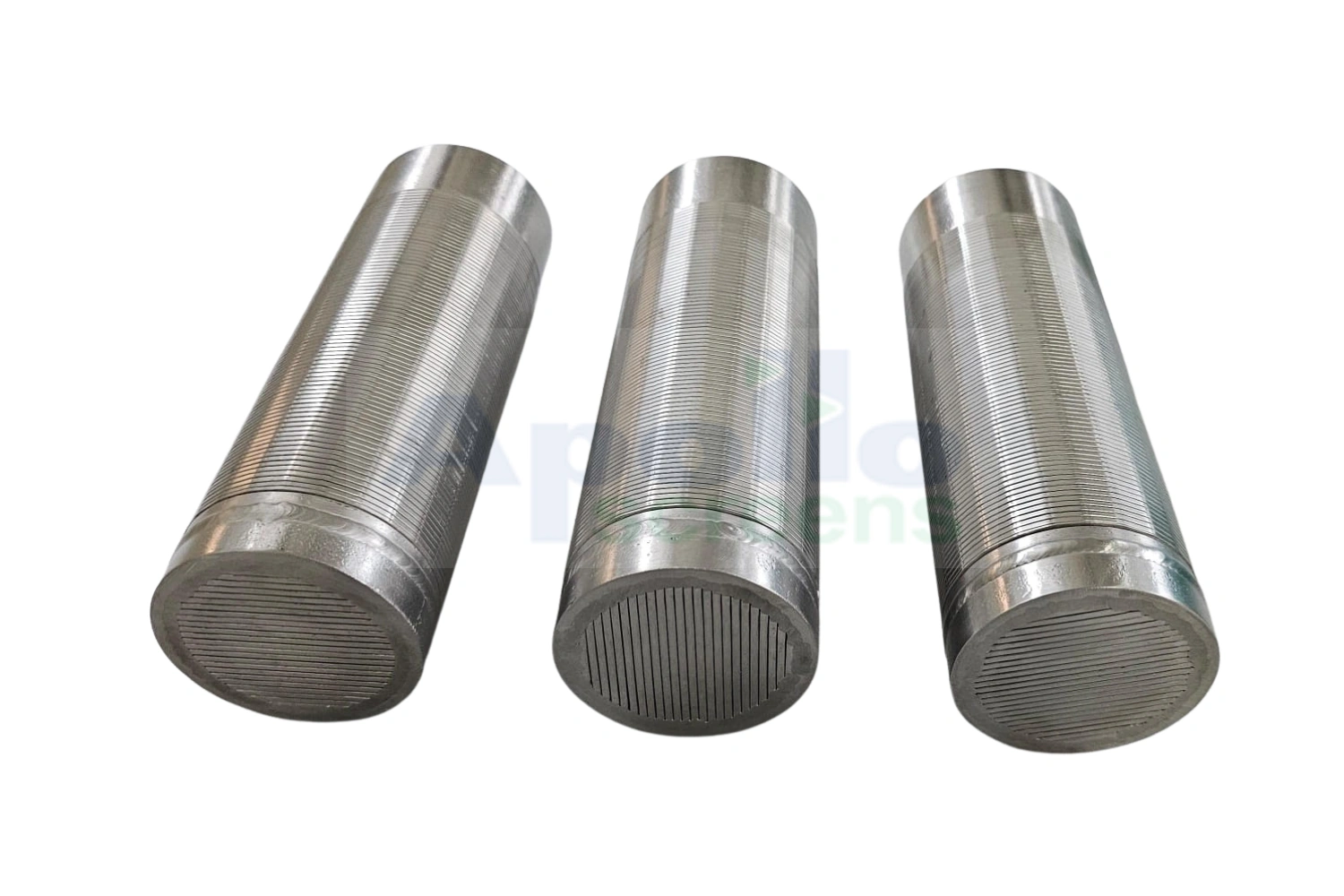

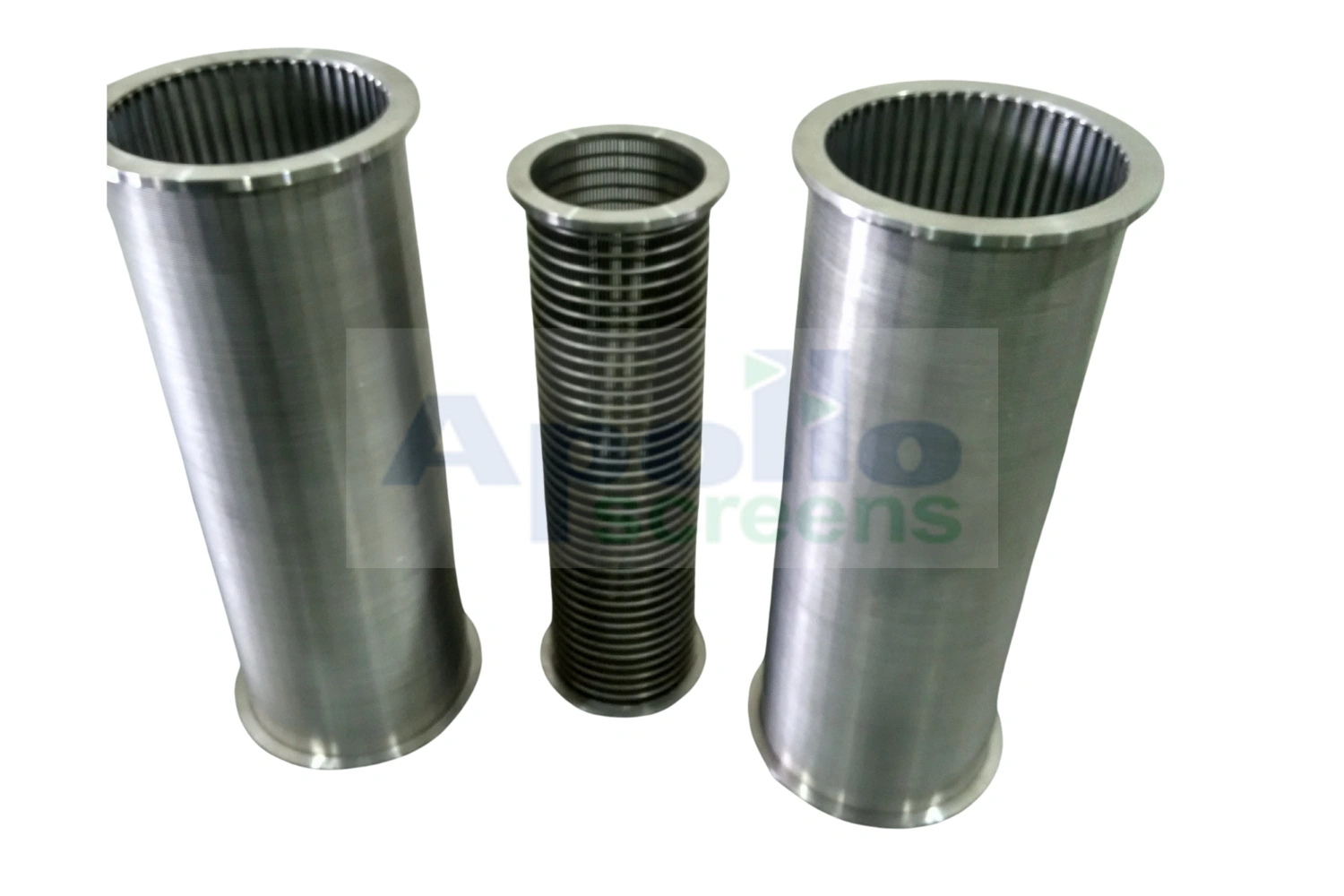

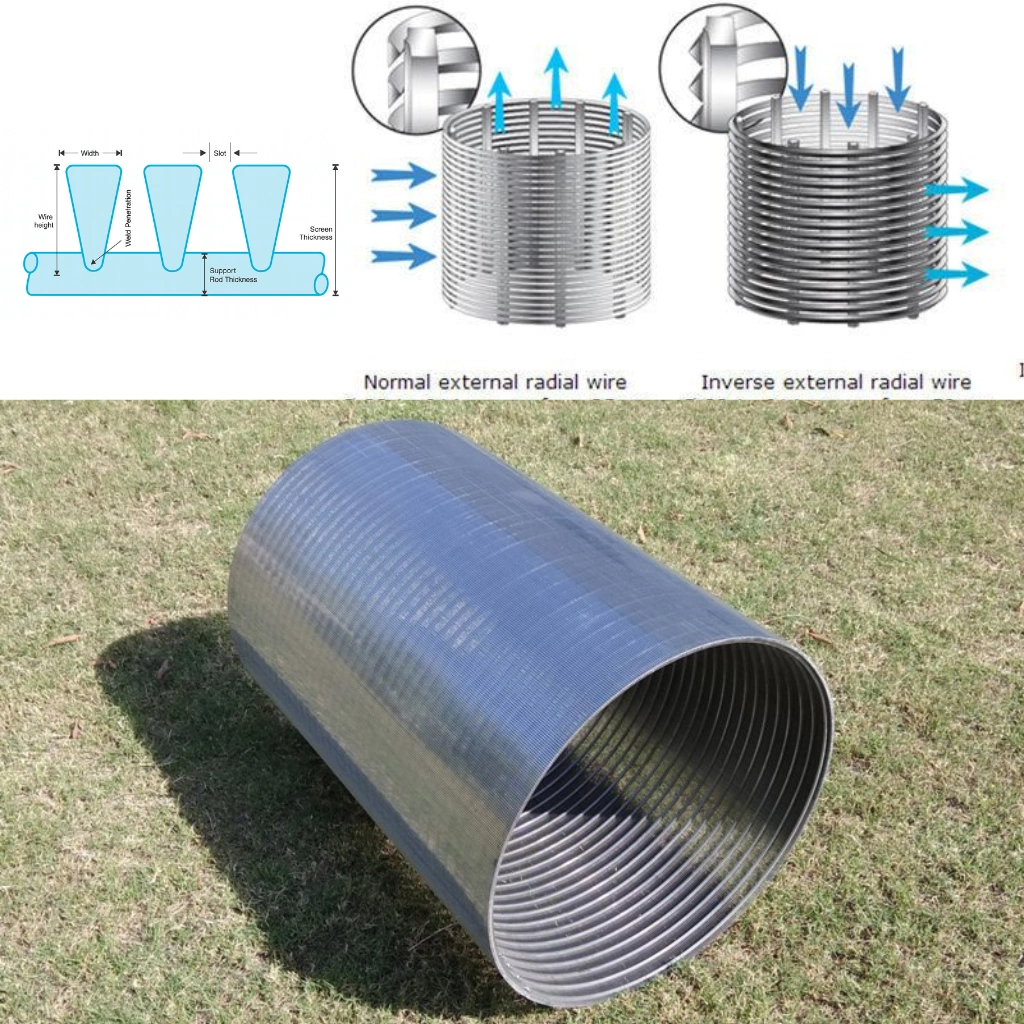

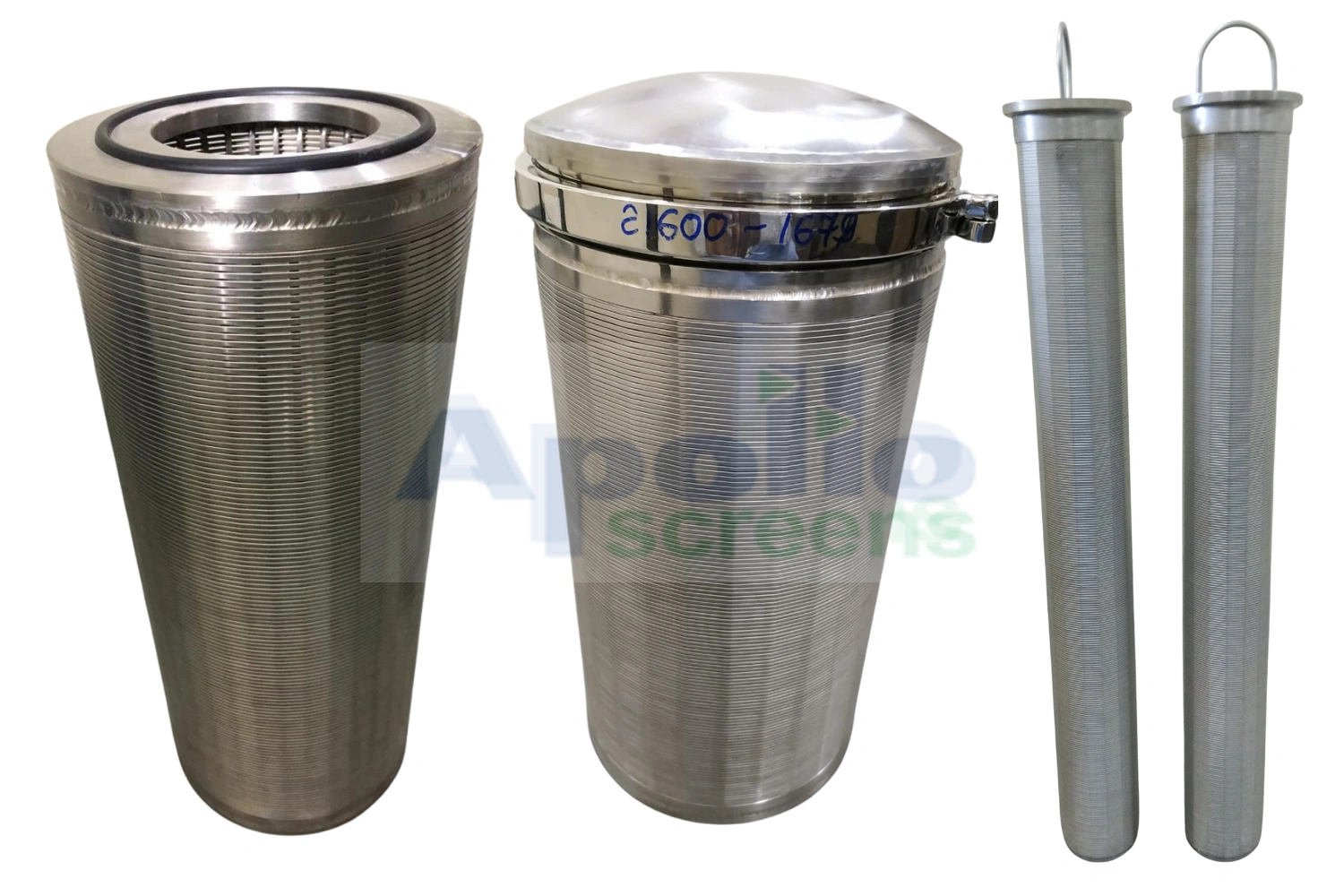

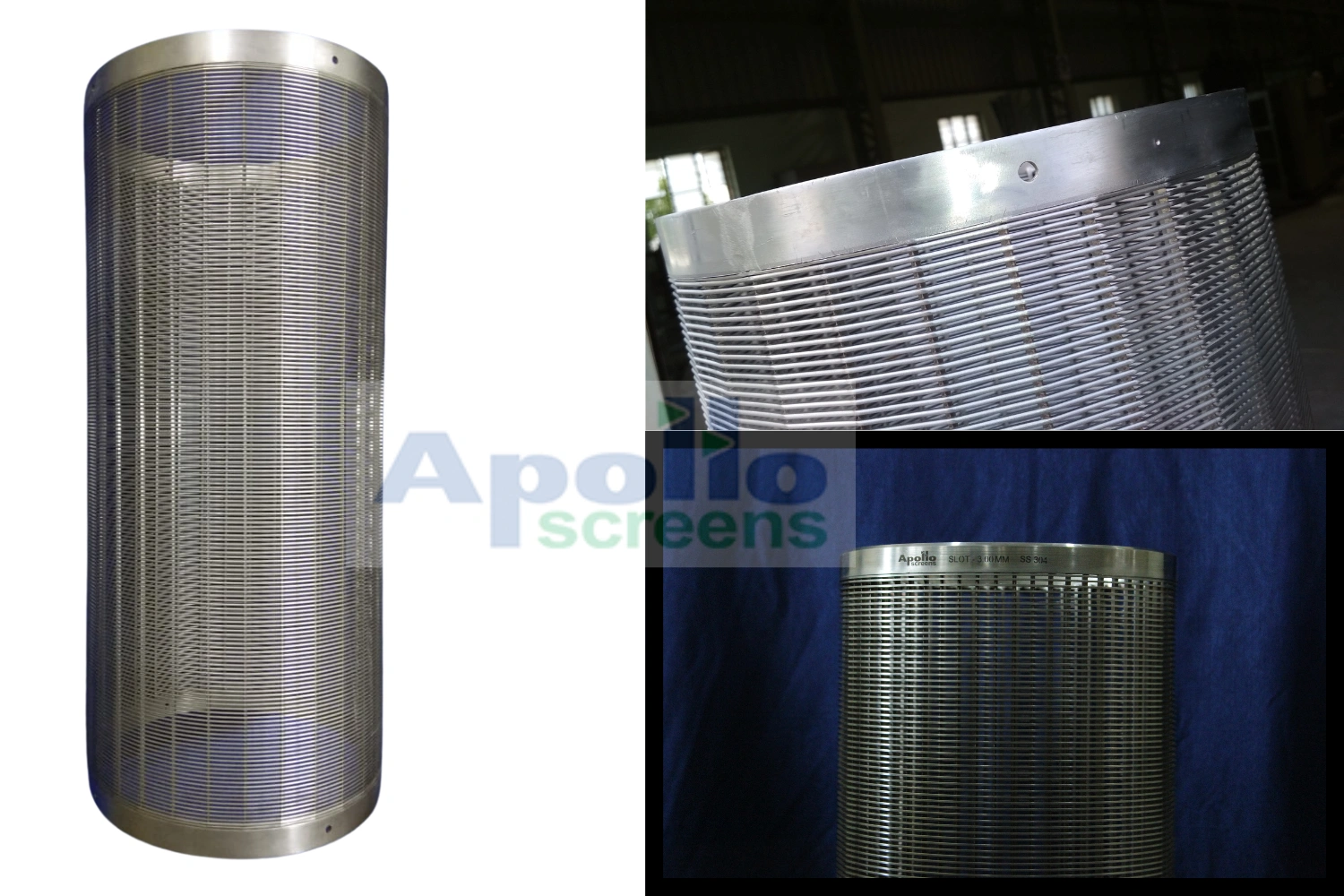

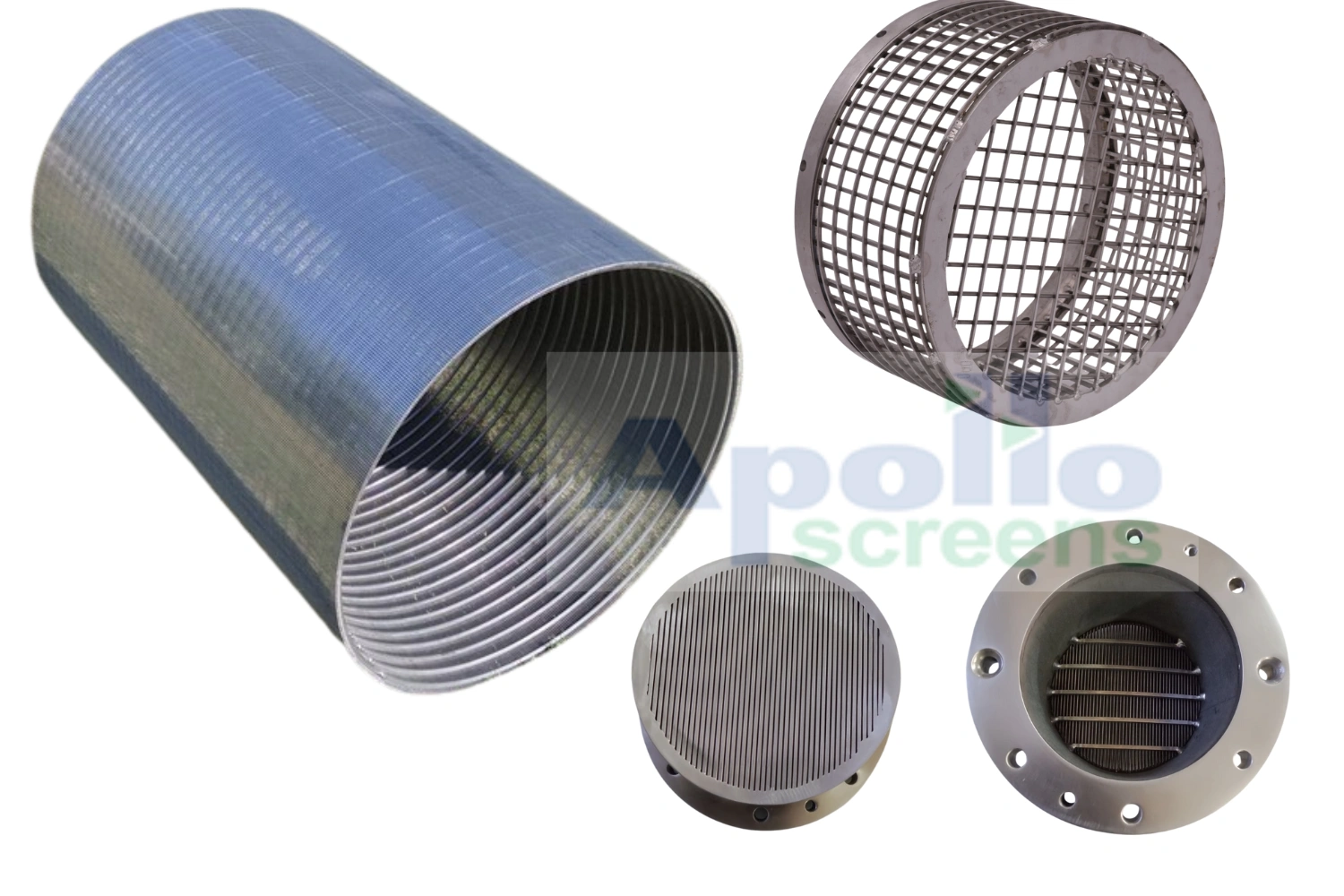

Apollo Screens manufactures high-performance cylindrical wedge wire (V-wire) screens that set global benchmarks in non-clogging filtration, structural strength, and long service life. Designed with continuous slot openings and resistance-welded V-wire construction, our screens ensure:
From water intake systems at power plants to lautering screens in breweries, Apollo’s cylindrical wedge wire screens are trusted worldwide for efficiency, precision, and durability.
🌊 Water & Wastewater
– Seawater & river intake systems
– Cooling water intake screens
– STP/ETP inlet screening
– Stormwater filtration
🍺 Food & Beverage
– Sugar juice extraction
– Brewery & distillery filtration
⛏️ Mining & Minerals
– Slurry dewatering
– Ore washing
– Classification screens
📄 Pulp & Paper
– Fiber recovery
– White water recovery
⚙️ Industrial & OEM
– Centrifuge baskets
– Rotary drum filters
– Catalyst retention
| Specification | Details |
|---|---|
| Slot Opening | 0.02 mm to 2.0 mm+ (custom on request) |

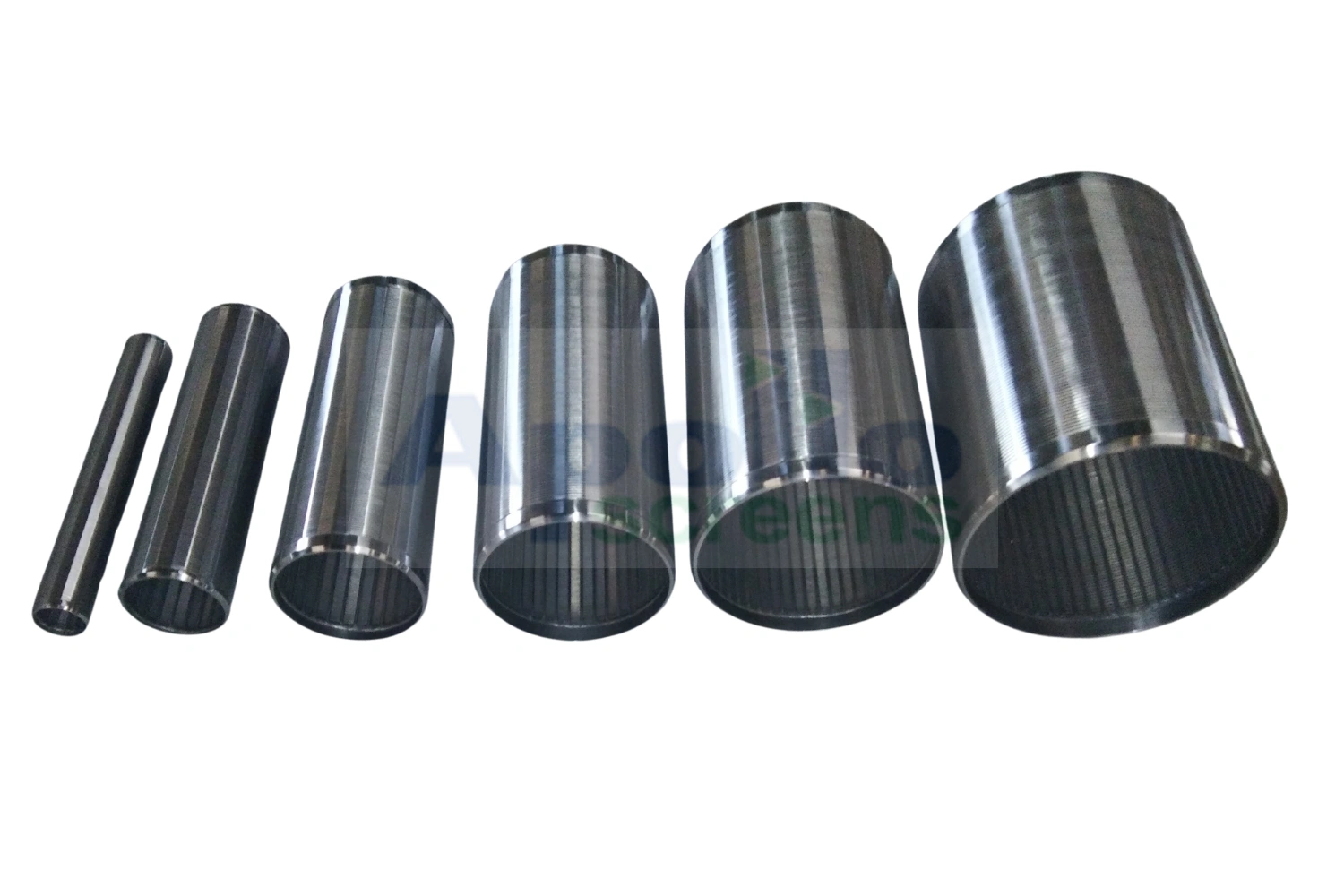

| Diameter | 20 mm to 3000 mm (larger modular assemblies also possible) |
| Length | Up to 6000 mm in one piece (subject to diameter limits) |
| Flow Direction | OUT → IN (FOTI) |

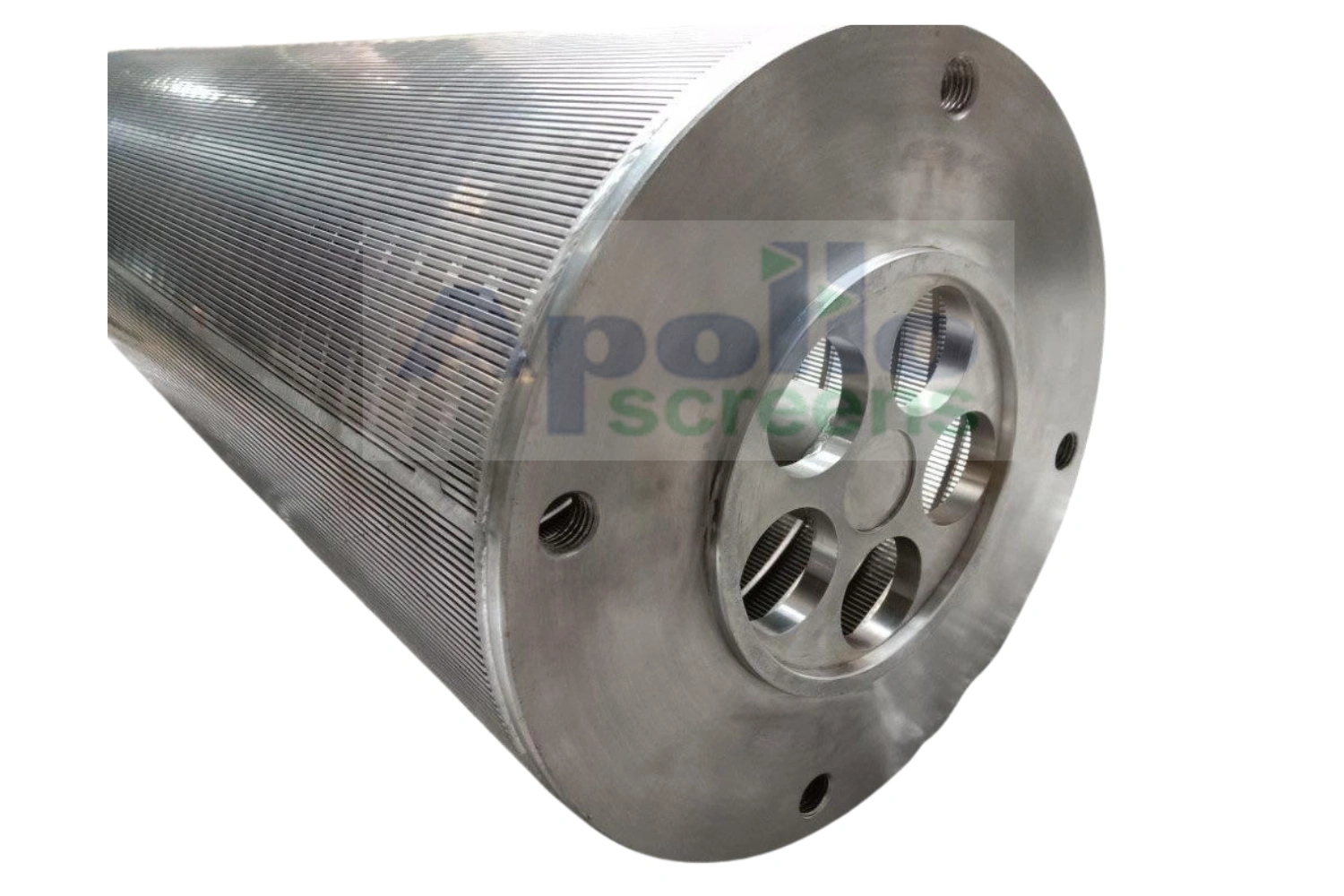

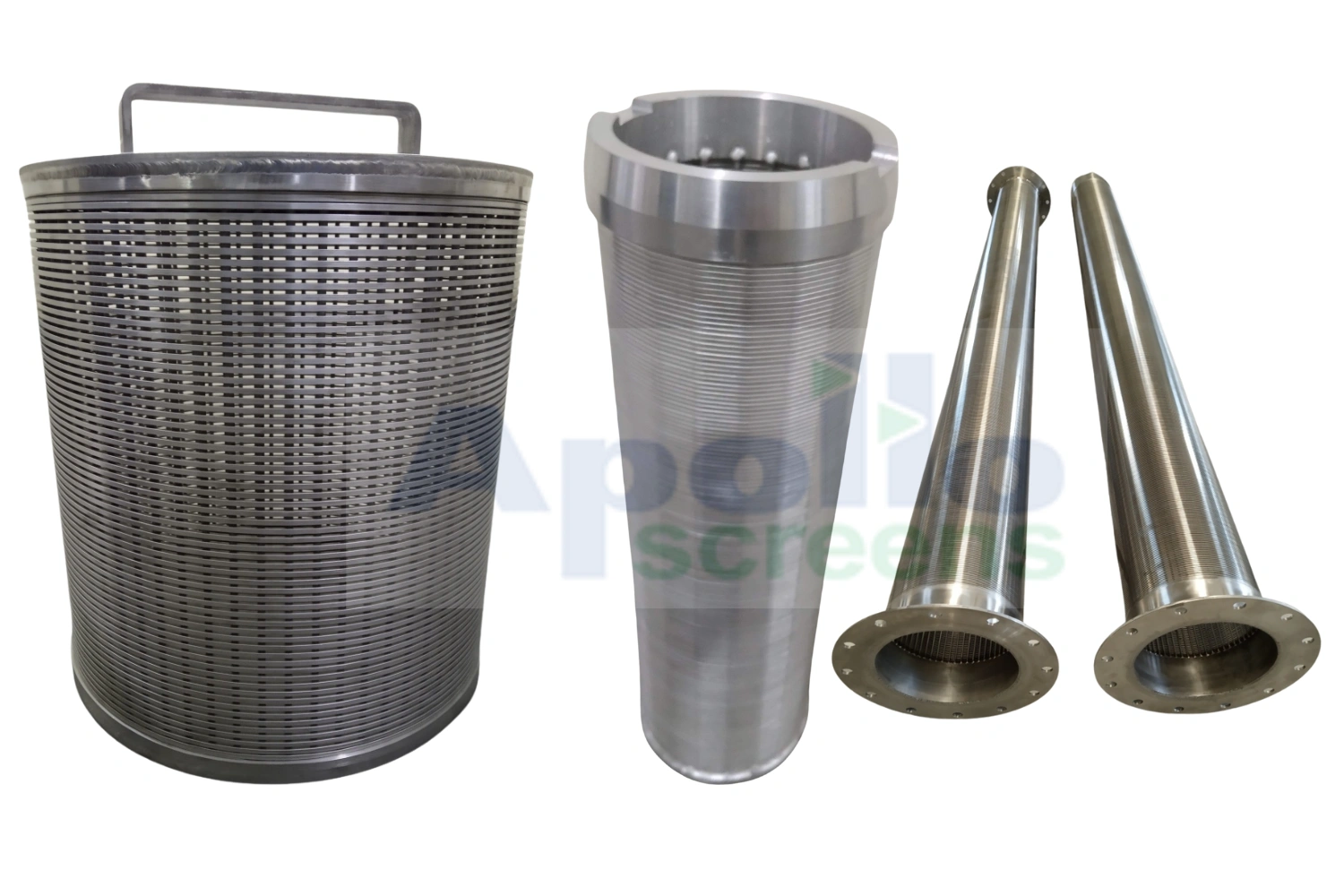

| End Connections | Plain ends, End rings, Flanges, Threaded ends, Custom fittings |
| Materials | SS304, SS316L, Duplex, Super Duplex, 904L, 316Ti, special alloys (with volume) |
| Slot Direction | Circumferential / Longitudinal |
