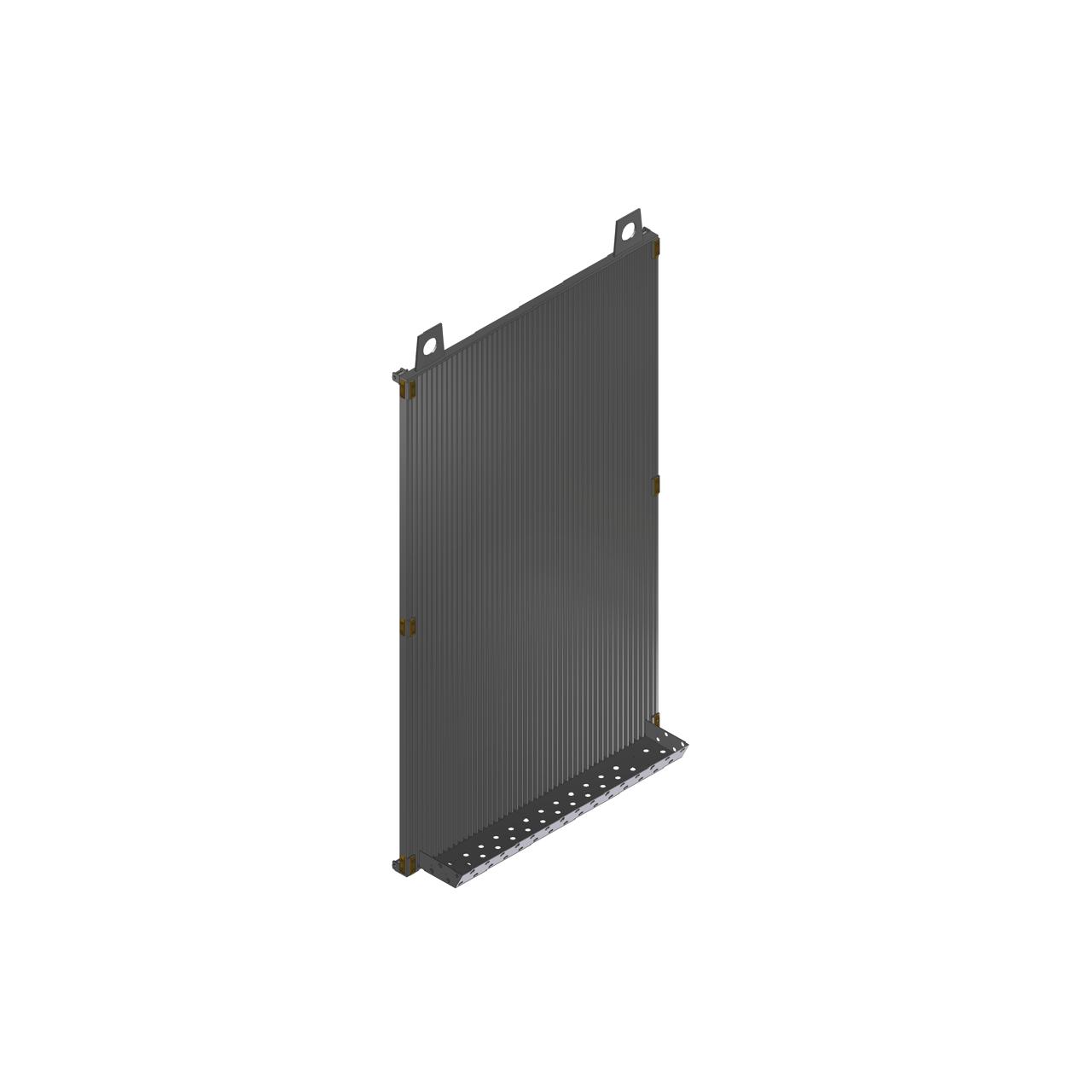

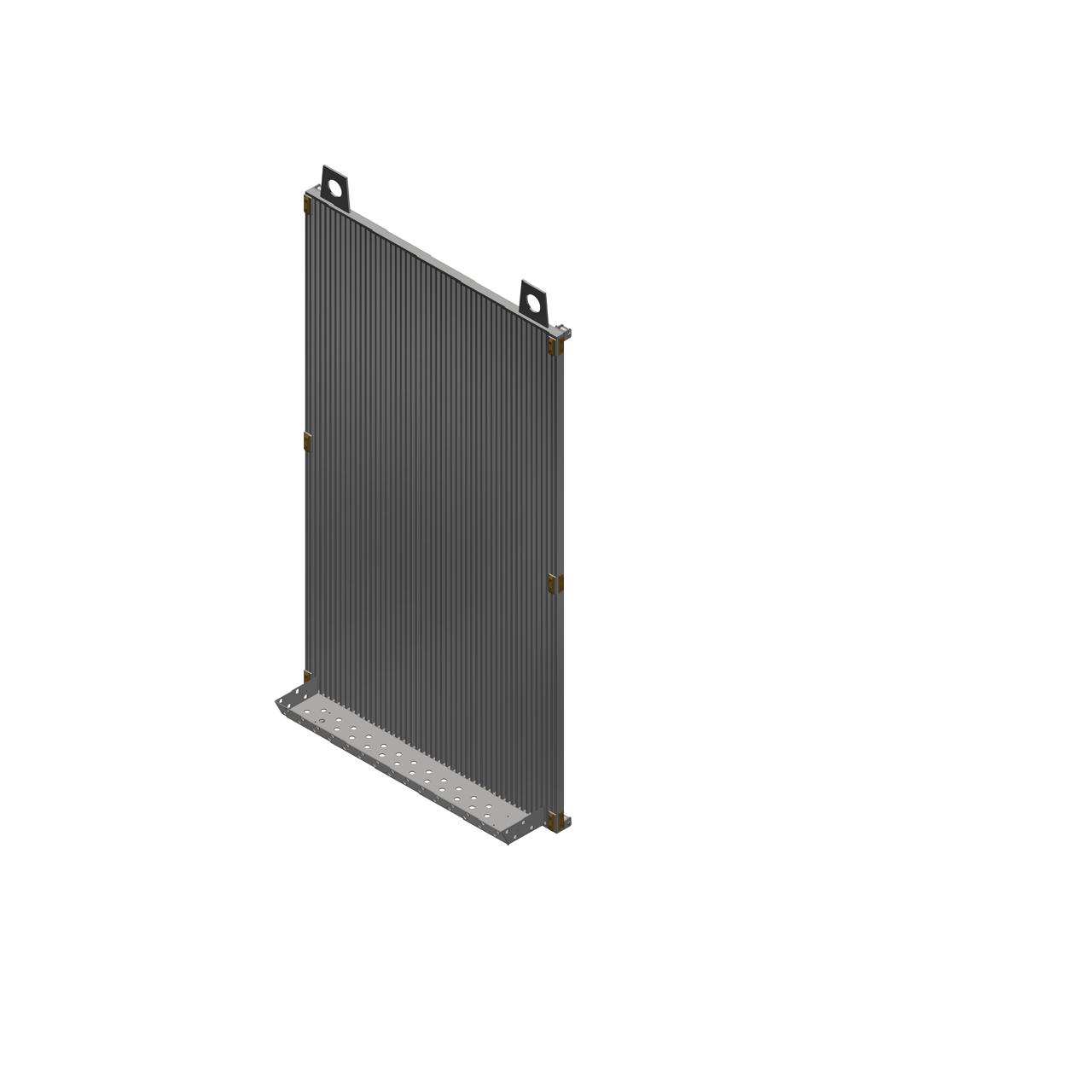

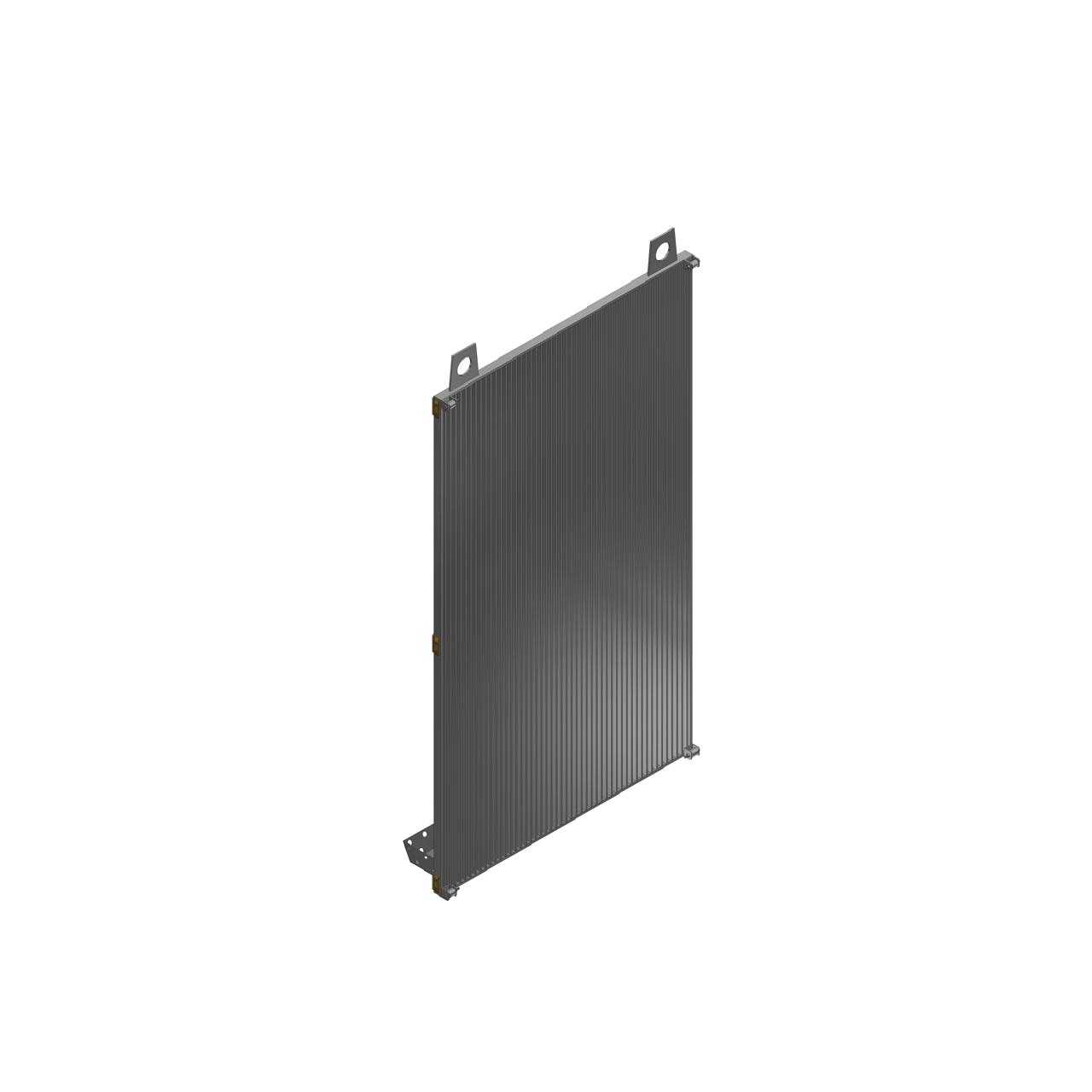

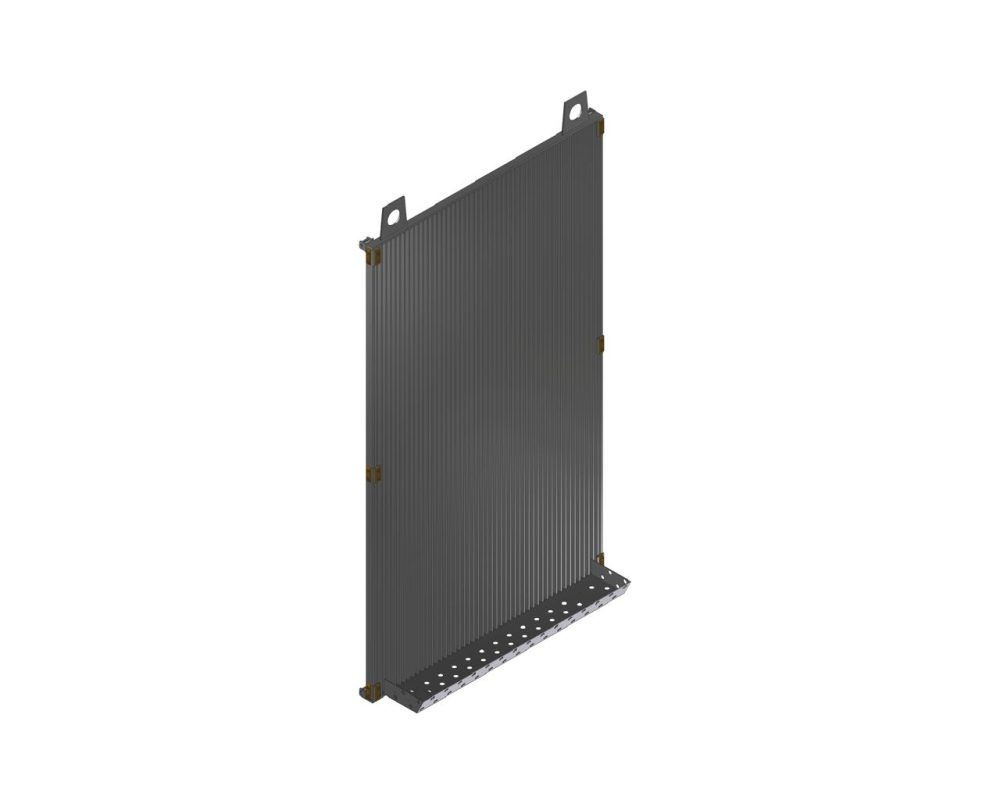

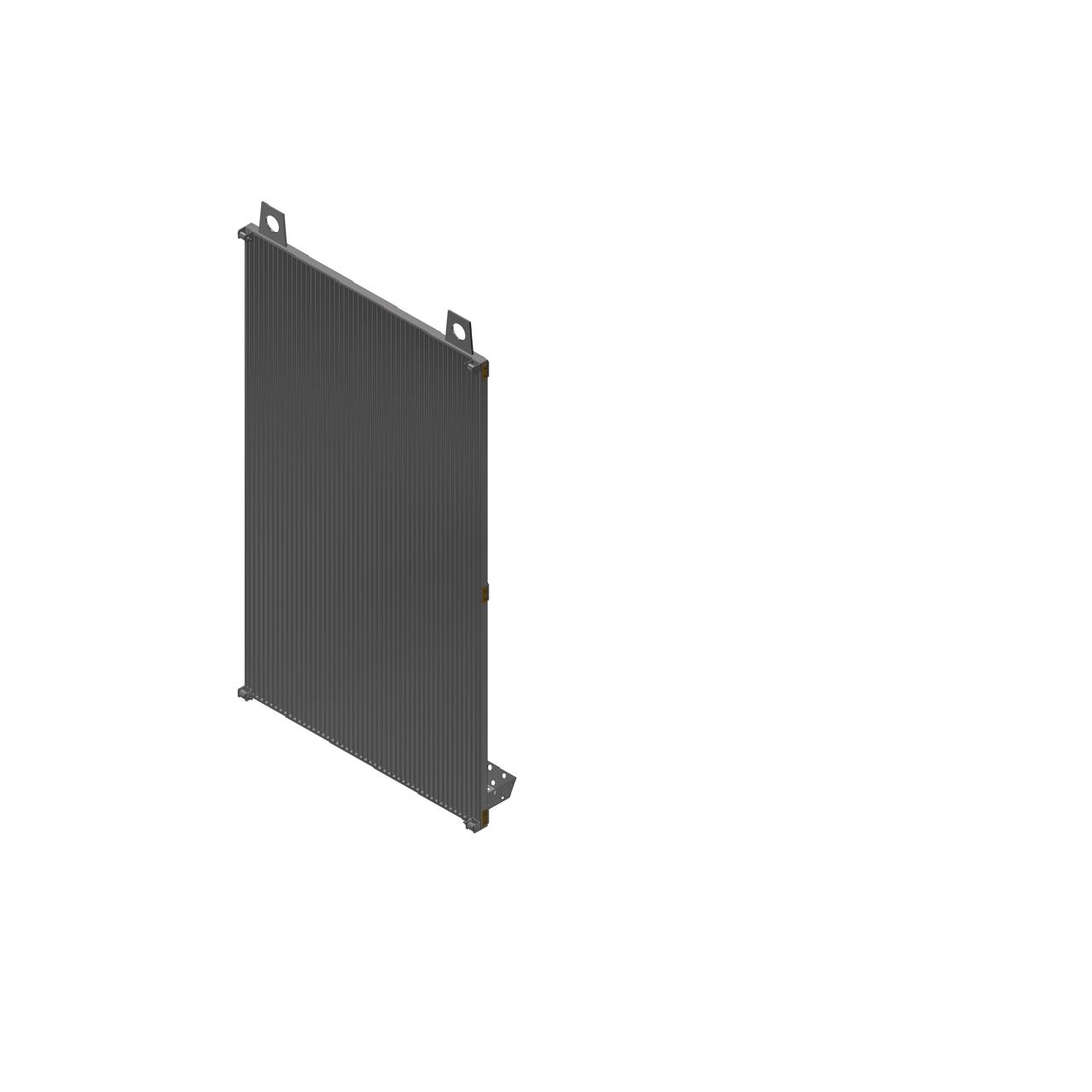

The J-Type Lifting Screen is a manually operated screening system designed for medium-flow wastewater channels where mechanical or automated screens are not required. Its unique J-shaped bucket arrangement allows effective collection, lifting, and removal of screenings from the channel. Built with stainless-steel construction and guided through brass bushes and steel rollers, this lifting screen offers a reliable, low-maintenance, and cost-effective solution for municipal STPs, sewage pumping stations, and industrial effluent treatment plants.
Wastewater flows through the vertical bars of the screen, where floating and suspended debris is retained. The accumulated screenings gradually settle in the J-shaped bucket installed at the lower section of the screen.
At desired intervals, operators lift the screen using a chain pulley block or manual winch system. As the screen assembly rises, the J-bucket collects and carries the trapped solids above the channel. The screenings are then manually emptied at a designated disposal area.
This lifting mechanism ensures efficient cleaning, minimal manual contact with debris, and smooth screen operation even under varying flow conditions.
| Parameter | Specification |
|---|---|
| Bar Spacing | 6 mm to 50 mm |
| Channel Width | 600 mm to 3000 mm |
| Inclination | 90° (Vertical) |
| Material of Construction | SS304 / SS316L |
| Lifting Mechanism | Manual winch or chain pulley block |
| Guides | Brass bushes and steel rollers |
| Screen Type | J-shaped bucket lifting screen |
| Operation | Manual lifting and debris removal |
| Duty Classification | Medium-duty screening |
| Key Features | Benefits |
|---|---|
| J-shaped bucket for debris collection | Ensures efficient and clean removal of collected screenings |
| Manual lifting with winch or pulley | Requires no power consumption, making operation highly economical |
| Vertical screen orientation | Space-saving design ideal for deep or narrow channels |
| Brass bushes and steel rollers | Provides smooth, low-friction operation and extended service life |
| Stainless-steel construction | Offers excellent corrosion resistance and long-term durability |
| Medium-duty design | Suitable for municipal and industrial wastewater applications |
| Easy installation & maintenance | Ensures minimal downtime and simplified cleaning operations |
