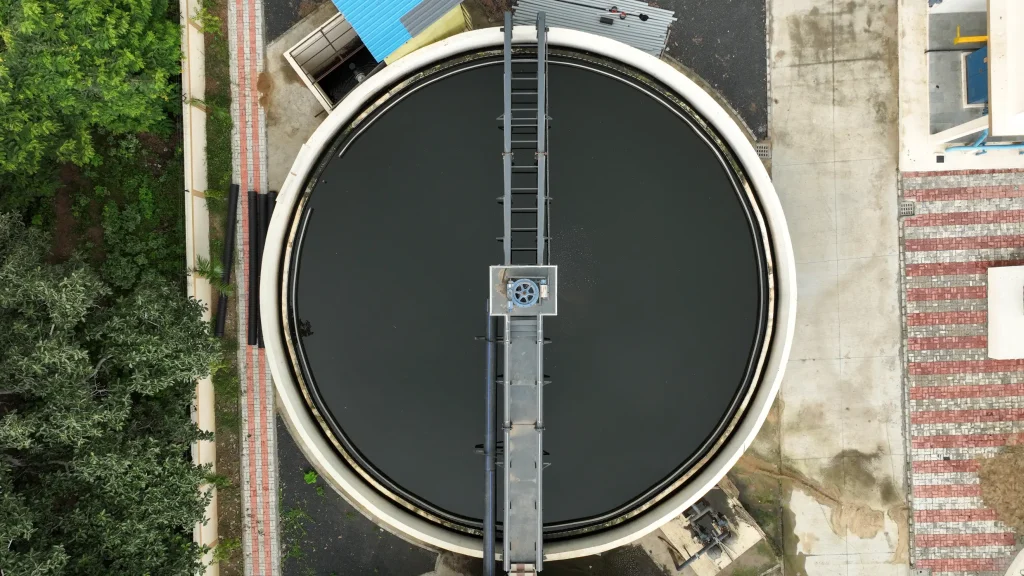

The Apollo Sludge Thickener is a high-performance solid–liquid separation system engineered to increase the solids concentration in municipal and industrial sludge streams. By utilizing gravity settling and continuous agitation, the thickener effectively reduces the volume of free water in sludge, ensuring a more compact, process-ready output.
This results in optimized loading for downstream equipment such as centrifuges, filter presses, digesters, and sludge drying beds—significantly improving operational efficiency and reducing energy and disposal costs.
With a rugged design, high-torque drive, and enhanced thickening mechanisms, the Apollo Sludge Thickener provides long-term, reliable performance under demanding wastewater treatment conditions.
| Parameter | Specification |
|---|---|
| Working Mechanism | Gravity-based sludge thickening |
| Capacity Range | 5 to 500 MLD |
| Drive System | Heavy-duty central shaft with high-torque gearbox |

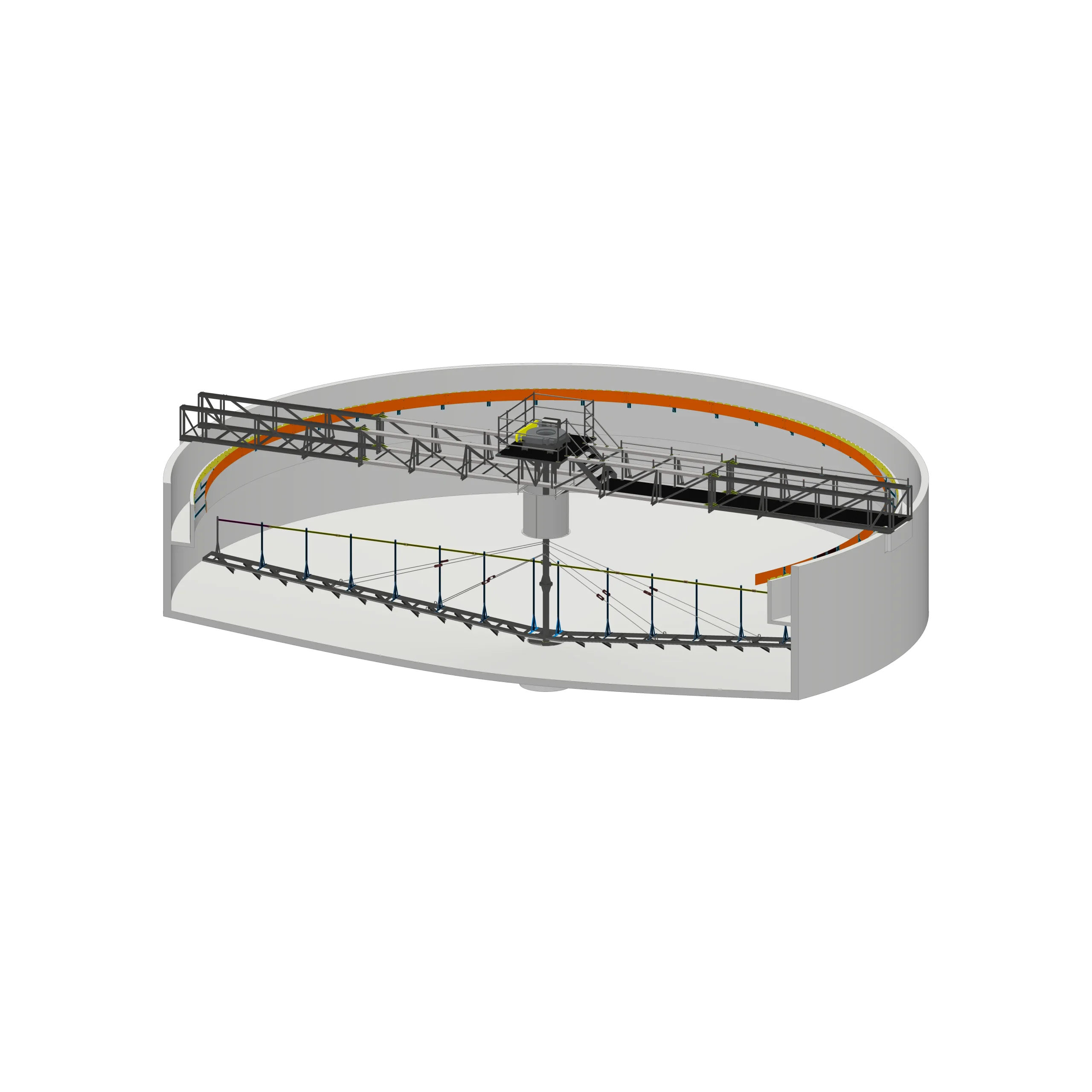

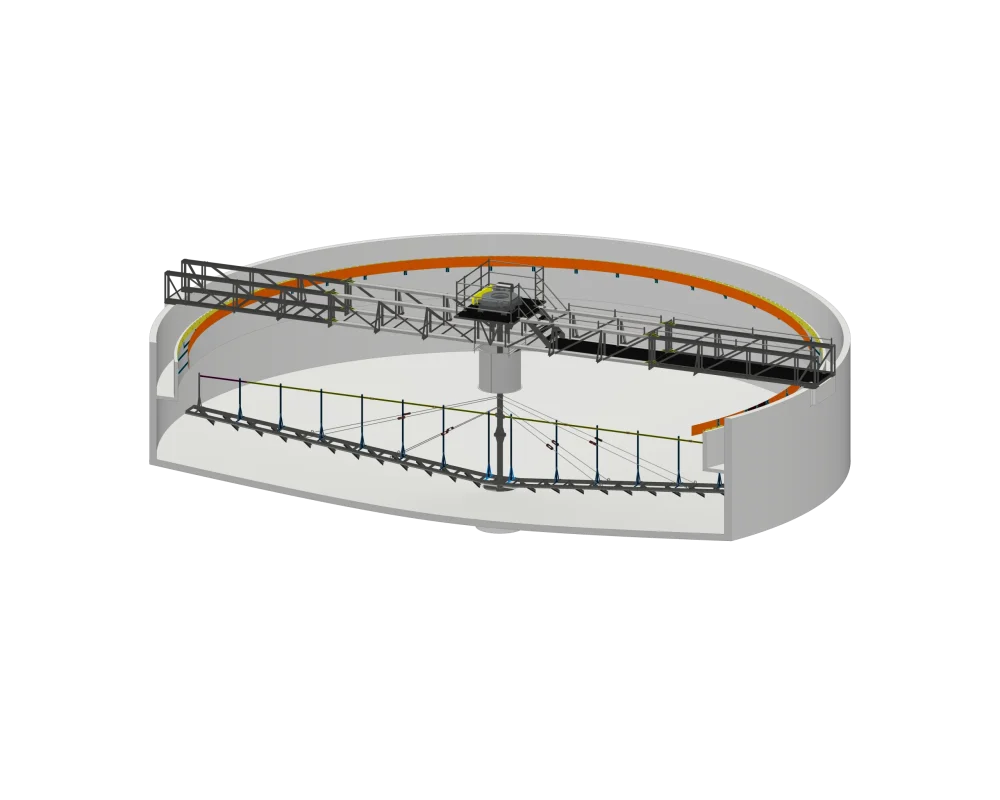

| Thickening Mechanism | Dual support picket fence / rake assembly |
| Tank Type | Circular thickening tank (MSEP / RCC as per design) |
| Overflow System | Peripheral weir plate |
| Construction Material | MS epoxy-painted / SS304 / SS316 |
| Safety Provisions | Walkway, railing, access ladder, inspection bridge |
| Operation Mode | Continuous |
| Key Features | Benefits |
|---|---|
| Heavy-duty high-torque central drive | Ensures reliable performance even with high sludge density |
| Dual support picket fence mechanism | Improves settling rate and overall thickening efficiency |
| Robust structural construction | Provides long-term durability with minimal maintenance requirements |
| Integrated overflow weir | Delivers clean and uniform supernatant discharge |
| Operator walkway & safety rails | Enables safe access for inspection and routine maintenance |
| Designed for continuous operation | Supports uninterrupted and stable plant functioning |
| Compatibility with downstream dewatering units | Reduces load, energy consumption, and overall O&M costs |
