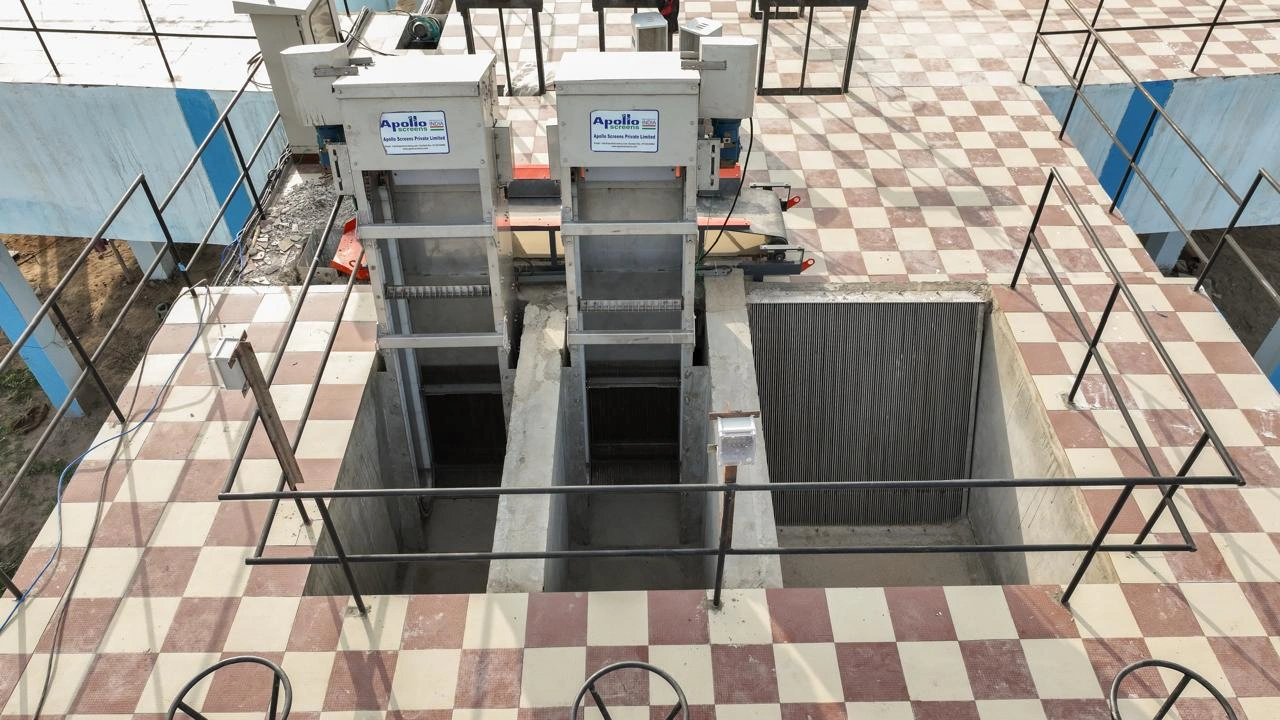

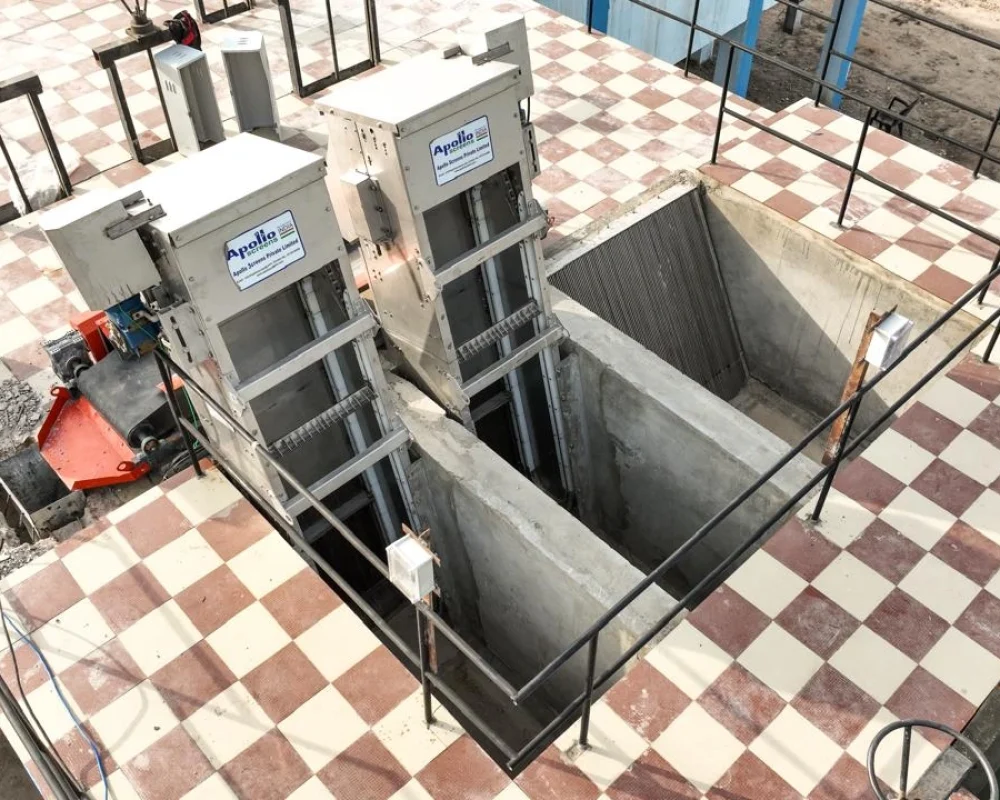

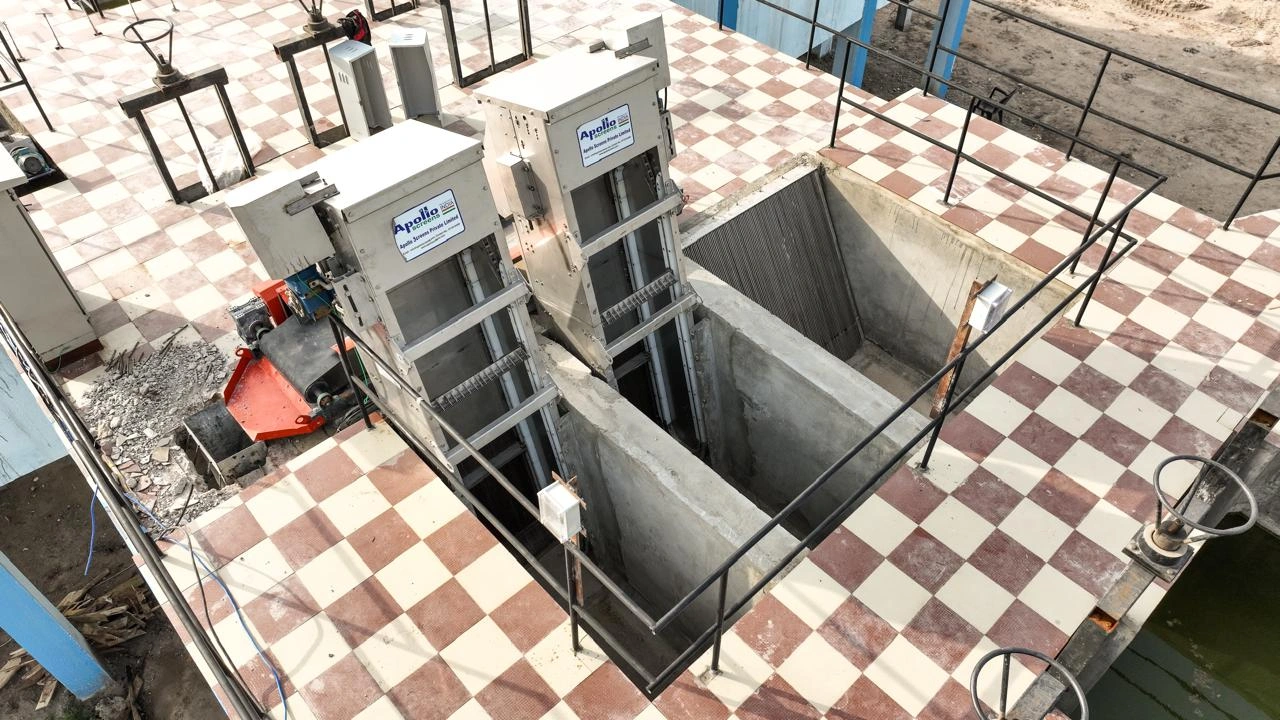

The Manual Bar Screen is a simple, robust, and cost-effective solution for removing large floating solids and debris from wastewater. Ideal for small to medium-flow installations, this fixed bar screen is installed at an inclined angle within the channel and manually raked at regular intervals. With no mechanical components and minimal maintenance, it offers an economical and reliable screening option for sewage treatment plants, pumping stations, and stormwater drainage systems.
| Parameter | Specification |
|---|---|
| Bar Spacing | 10 mm – 70 mm |
| Screen Width | 300 mm – 1500 mm |
| Material of Construction | SS304 / SS316L |
| Inclination Angle | 45° – 70° |
| Installation Method | Fixed in channel |
| Operation | Manual raking |
| Frame Design | Single or double frame |
| Channel Depth Compatibility | Customizable per site |
| Key Features | Benefits |
|---|---|
| No mechanical or moving parts | Highly reliable and virtually maintenance-free |
| Rugged stainless-steel construction | Long service life with excellent corrosion resistance |
| Simple, fixed design | Easy installation and low operational complexity |
| Wide range of bar spacing | Suitable for coarse screening in diverse applications |
| Manual raking operation | No electricity required; highly cost-effective |
| Flexible installation inclination | Optimized flow-through and reduced headloss |
