Apollo Hydro Box/Roof Top Filter

PRODUCT OVERVIEW

ARC- Advance Rainwater conservator is a new concept developed by Apollo screens

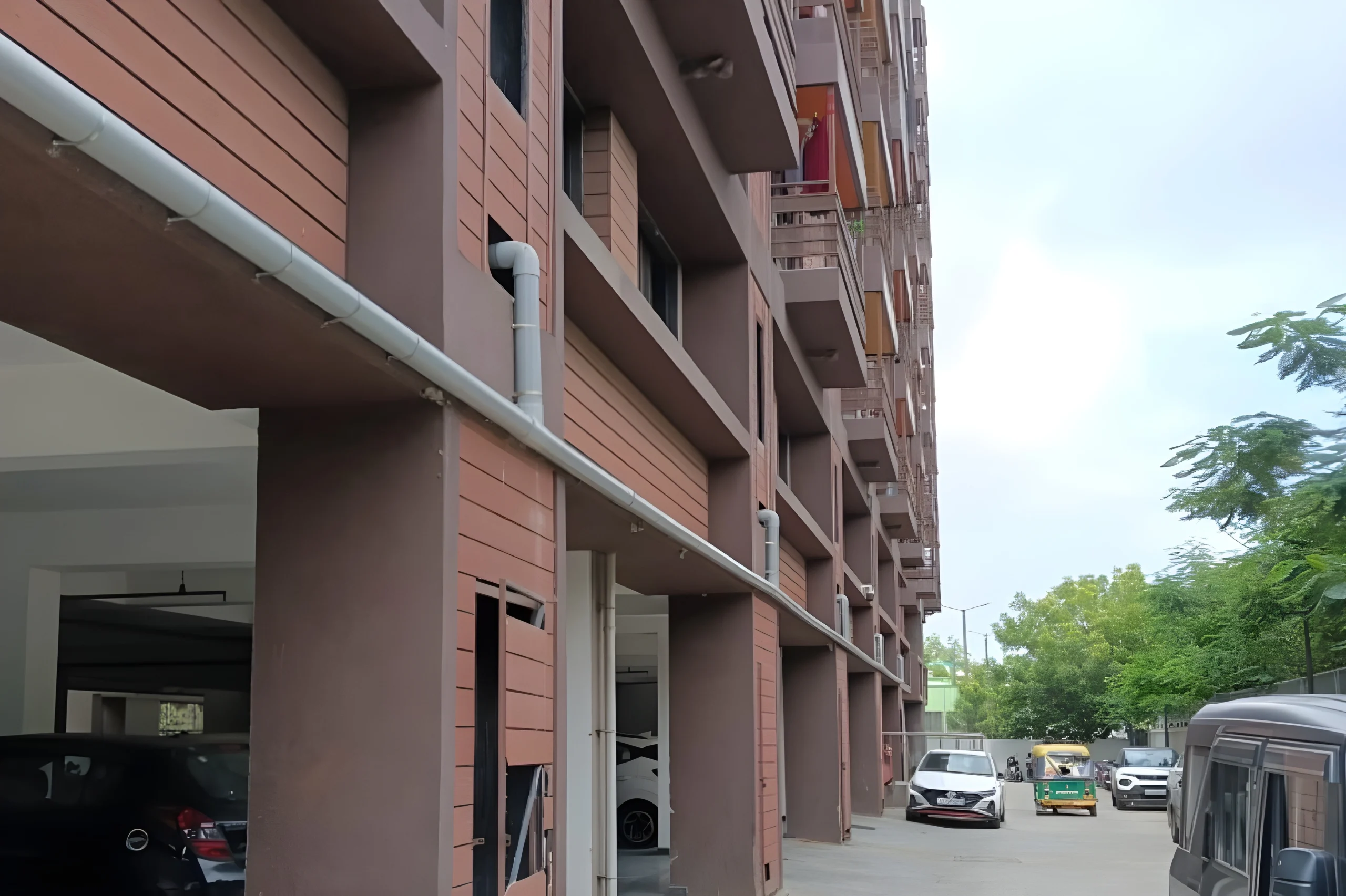

In urban areas, all buildings are constructed with rooftops of reinforced Cement Concrete (RCC), tiles, cement sheet, galvanized zinc sheets etc. During monsoon the rain water should be removed from building made from these mentioned material & this rain water is Darwin out in the storm water line & which practically goes away from city.
The rain water collected on these roof top can be harvested after removal of suspended solid & same can be stored in some tank.

Working Principle of Filter

Roof top filter work on proven technology of shearing action of special designed screen which provide cutting action to water comes over it.

How it works

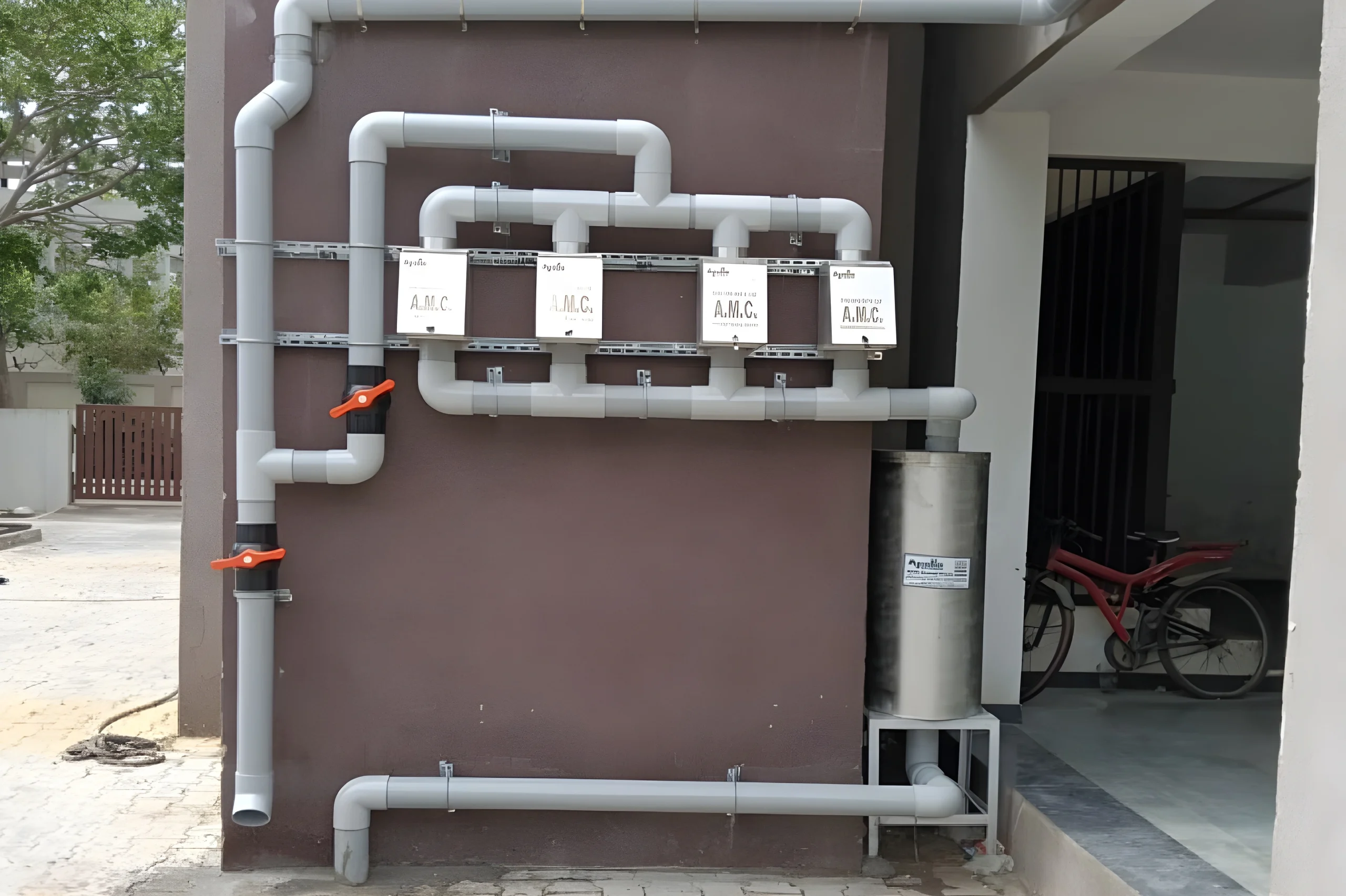

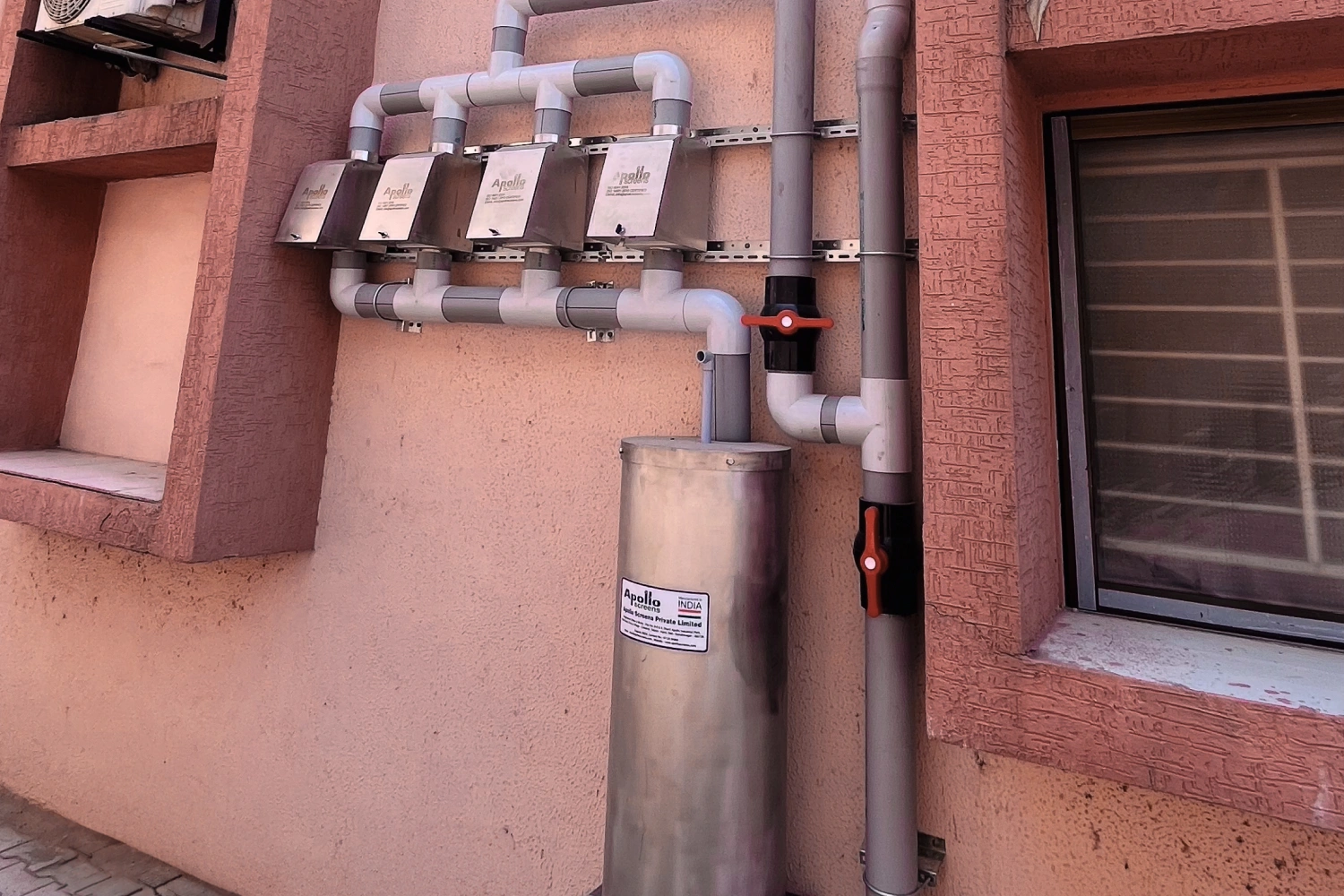

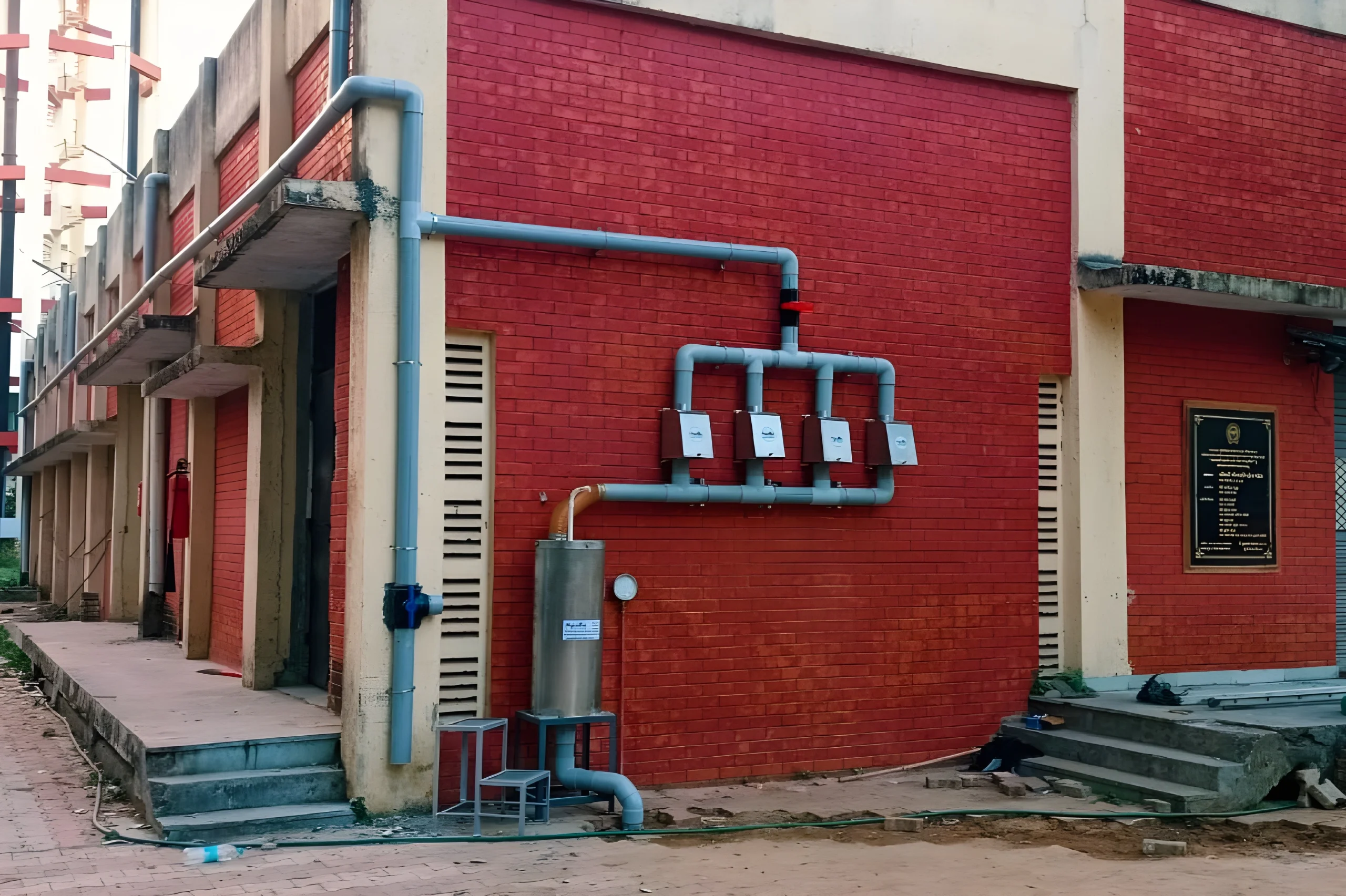

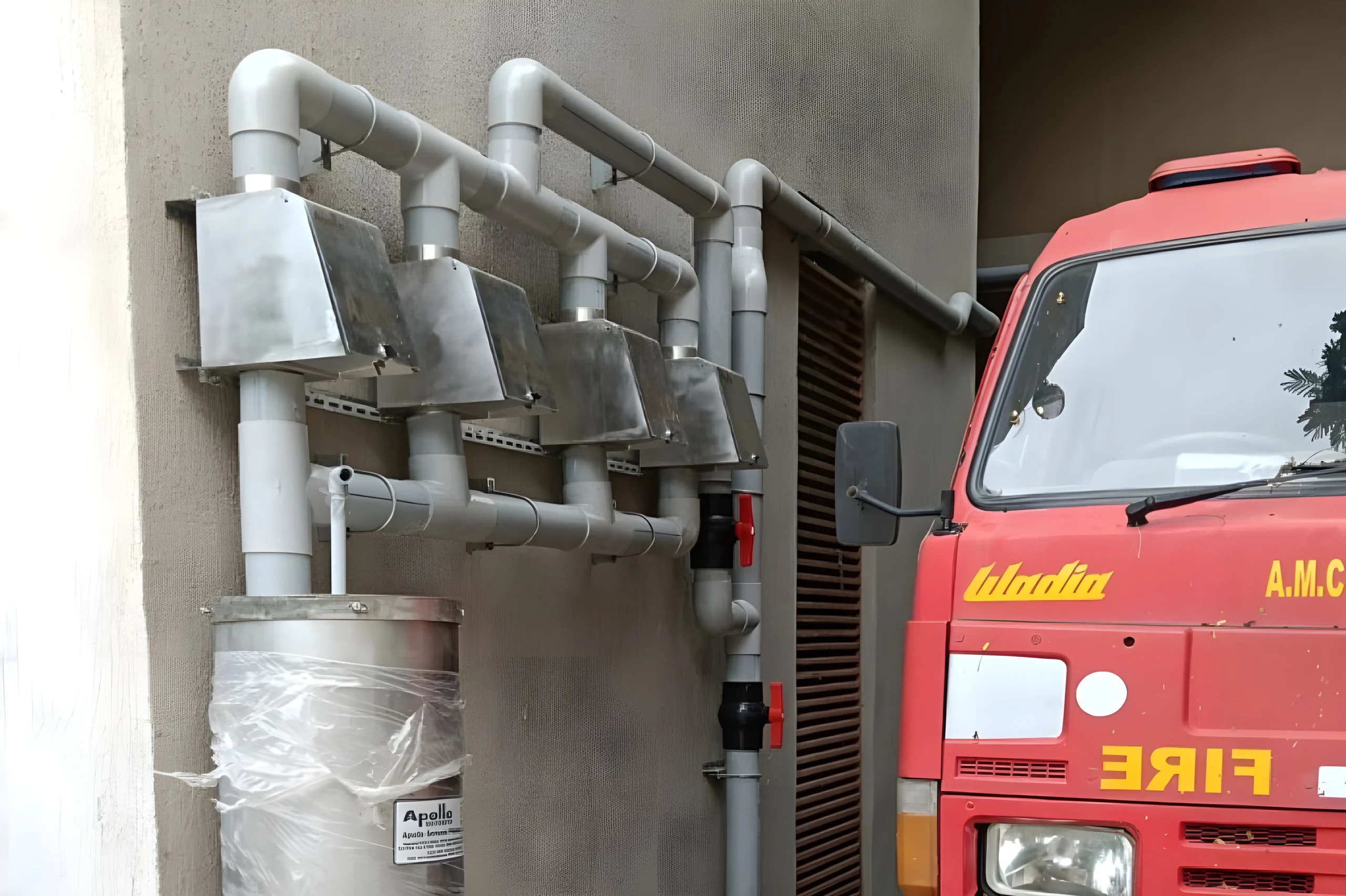

The drain line of roof is directly connected with inlet of filter.
The inlet of roof drain fitted with inlet of filter.
The outlet is connected with pipe line of storage tank.
At the first rain the water is by pass from the filter
Once 1st flow is passes than bypass valve is closed

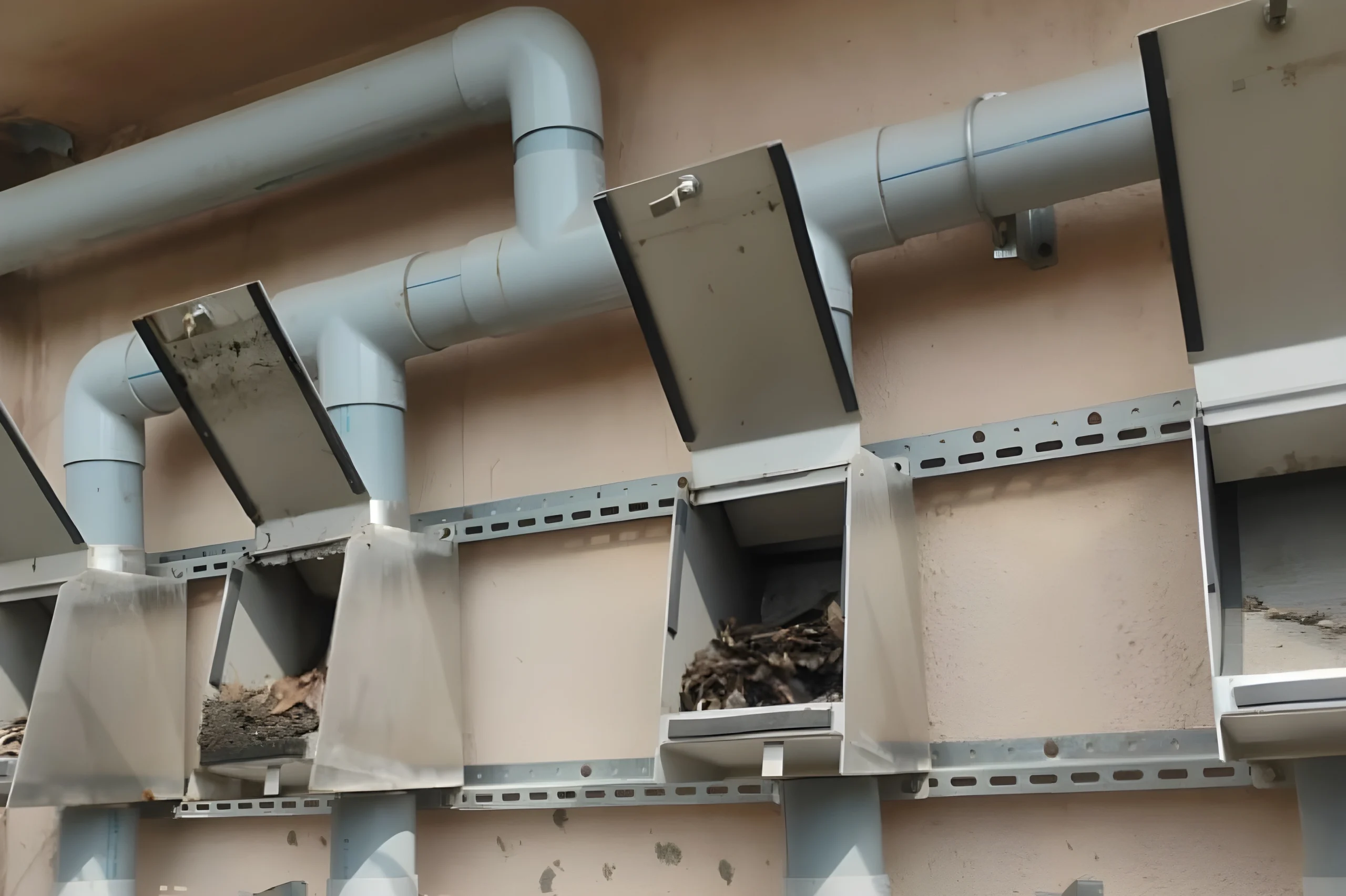

Rain water come on the filter & all debris collected on the filter & clear water passes though outlet pipe.
Provides high quality water, soft and low in minerals

Benefits of Apollo Roof top filter

Very fine filteraion up to 500 micron.- So almost clear water
No maintenance – No supervision required.
Suitable to handle even heavy rain without wastage of rain water.
Filter element is made from SS304 ensure long life.
Easy to install

Download Brochures

Download PDF

Advantages

Efficient Rainwater Filtration by wedge wire screen by removing leaves, silt, and debris before water enters in Tripple layer.
Non-Clogging V-Wire Design – Ensures smooth flow, minimal maintenance, and long-term performance.
SS304 Construction – Corrosion-resistant, durable, and hygienic, making it safe for potable water use. Long Service Life – High-strength stainless steel ensures reliability even heavy rainfall conditions.
Harvested rain water can be used artificial recharge techniques
Rooftop rain water harvesting is to make water available for future use.
To augment the ground water storage and control decline of water levels.

Technical Specifications

Parameter	Specification
Available Sizes	302X204X300 L X B X H (mm)
Available Slot Sizes	From 0.15 mm to 3 mm
Materials	SS304 or as required to meet customer requirements
End Fittings	To suit customer requirements

Key design features of Roof top filter

Sr. No.	Design Feature	Description
1	Multi-Stage Filtration	Primary, secondary (wedge wire), and final filtration stage if required with Triple Filter assembly.
2	Self-Cleaning / Non-Clogging Screen	V-shaped wedge wire avoids clogging and allows automatic cleaning.
3	Optimized Slot Size (0.25–1 mm)	Slot size selected based on roof type and water quality requirements.
4	High Flow Handling Capacity	Designed to withstand heavy rainfall without overflow.
5	Durable Construction	Made of SS304/316L for corrosion resistance and long life.
6	First-Flush Compatibility	Works with first-flush systems to divert initial dirty rainwater.

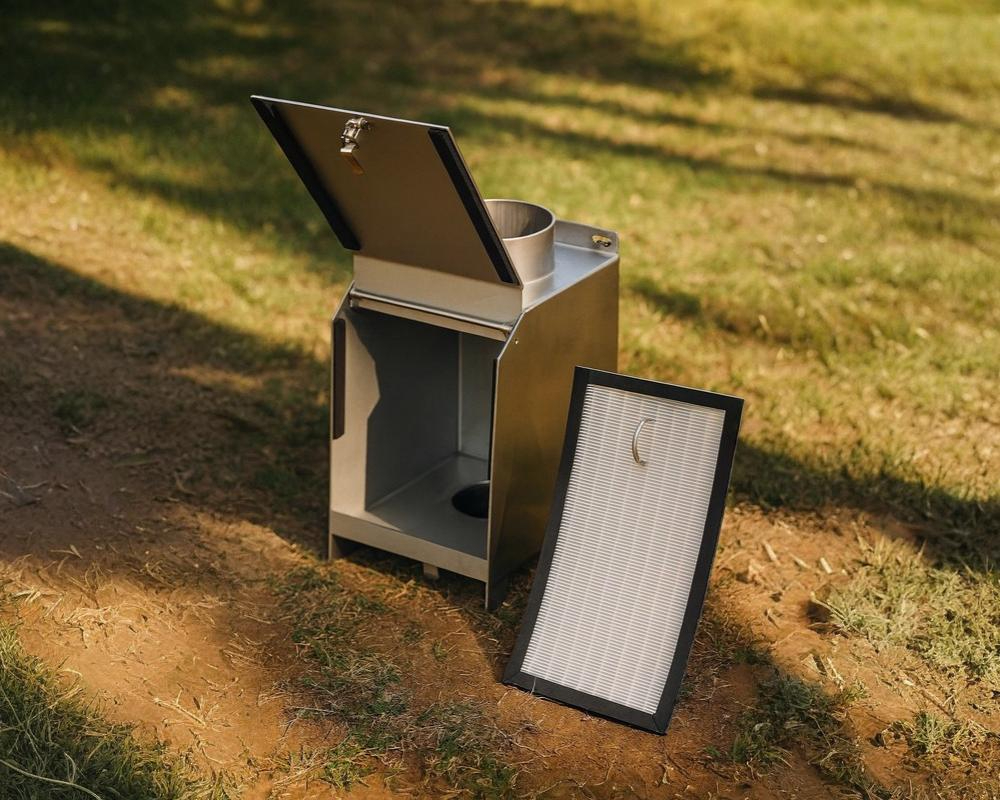

7	Easy Installation & Maintenance	Simple installation, removable screens, low maintenance.
8	Compact & Aesthetic Design	Fits small spaces and looks neat on terraces.
9	High Open Area Screens	High flow efficiency with minimal pressure drop.
10	Compatible with All Roof Types	Works with RCC, sheet roofs, tile roofs, sheds, and multi-outlet systems.
