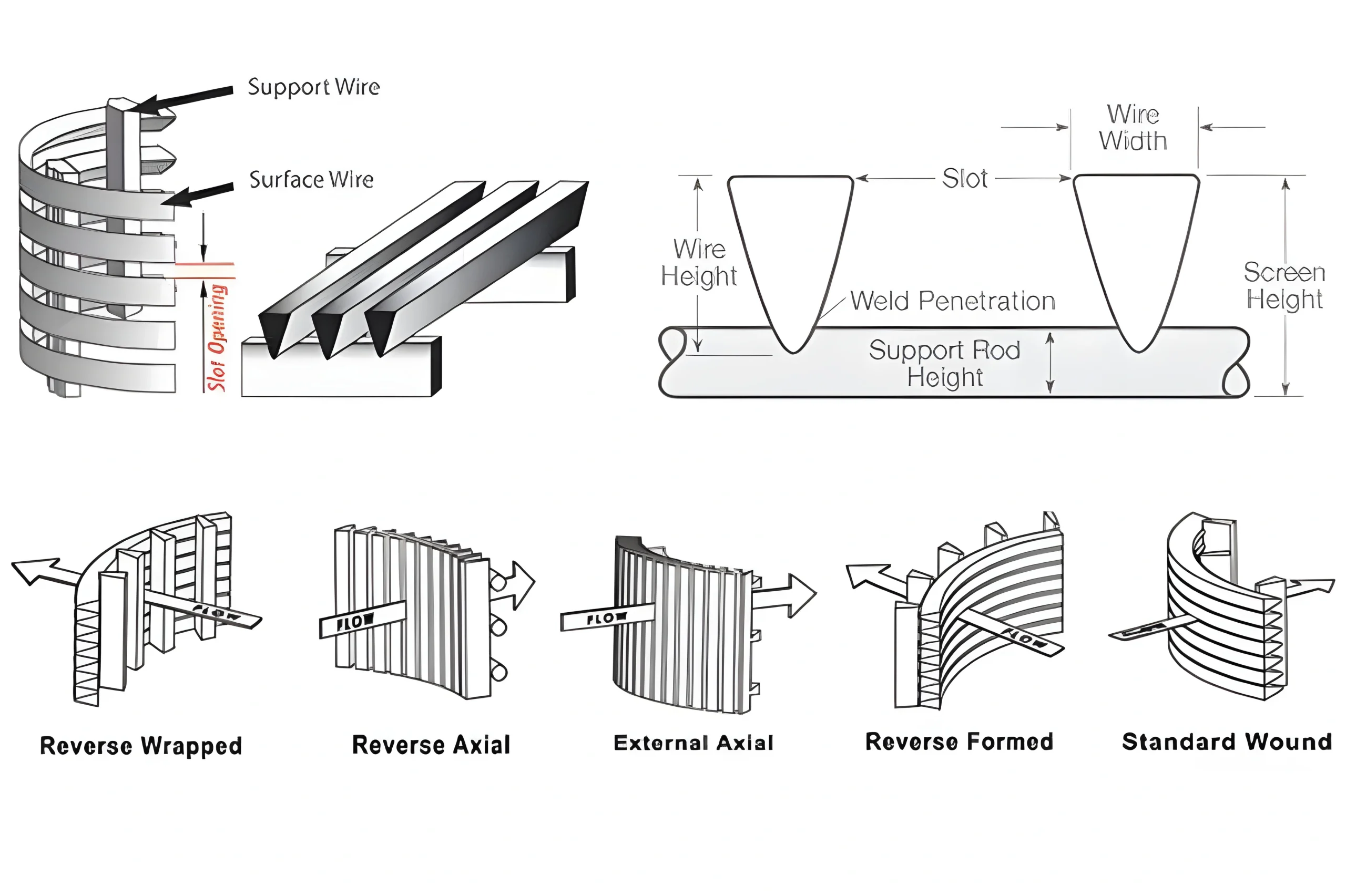

Apollo Reverse Wedge Wire Screens are engineered with a FITO (Flow-In-To-Out) configuration, where the smooth face of the V-wire is on the inside. Feed enters from the internal surface and flows outward through precision-cut slots. This design ensures high flow capacity, uniform filtration, and exceptional non-clogging performance, even under heavy-duty industrial conditions.
Precision-welded V-wire construction and rigid support profiles give the screen unmatched mechanical strength, longer service life, and ease of cleaning—making it ideal for continuous process industries.
| Smooth Interior Surface |
|---|
|
The smooth V-wire surface on the inside ensures: • Zero ledges or edges for material build-up • Cleaner flow path • Minimal turbulence |
| Solids Retained Inside (Easy Cleaning) |
|
Oversized particles remain on the inside surface, where they can be: • Washed off • Mechanically scraped • Easily removed for batch operations |
| Low Pressure Drop (Low ΔP) |
|
The outward flow minimizes resistance and boosts: • Filtration speed • Hydraulic efficiency • Pump energy savings |
| Excellent Backwash Efficiency |
|
Reverse-flow screens are naturally suited for: • Backwashing • CIP systems • Auto-flush cleaning |
Apollo Screens manufactures reverse wedge wire screens according to:
– Specific slot tolerances
– Process flow requirements
– OEM drawings or plant standards
– Pressure, load & RPM considerations
– Surface finish & heat treatment needs
We also offer:
– Complete assembly fabrication
– Reinforced baskets for centrifuges
– Surface polishing (mirror/matt/bead-blast)
Industrial Segments
OEM Integrations
| High-Performance Features |
|---|
|
• Continuous V-wire welding • High open area (up to 60% depending on design) • Precision slots from 30 microns onward • Superior non-clogging performance • High mechanical strength • Excellent corrosion & wear resistance • Custom geometries for OEMs |
| Material Options |
|
Available in industry-standard and super-alloy grades: • SS304, SS316, SS316L • Duplex 2205 • Super Duplex 2507 • SS904L • SS316Ti • Hastelloy / Inconel (on request) |
| Parameter | Range / Options |
|---|---|
| Slot Opening | 30 micron to 3 mm or as custom |
| Diameter | 25 mm to 2000 mm (custom) |
| Length | Up to 6 meters in single piece |
| Profile Wire | V-wire, trapezoidal wire |
| Support Profiles | Rods, rings, ribs (as per design) |
| Open Area | Up to 60% |
| Flow Direction | IN → OUT (Reverse Flow) |
| End Connections | Welded rings, flanges, collars, threads |
| Material Grades | SS304, 316L, 904L, 2205, 2507, 316Ti, others |
