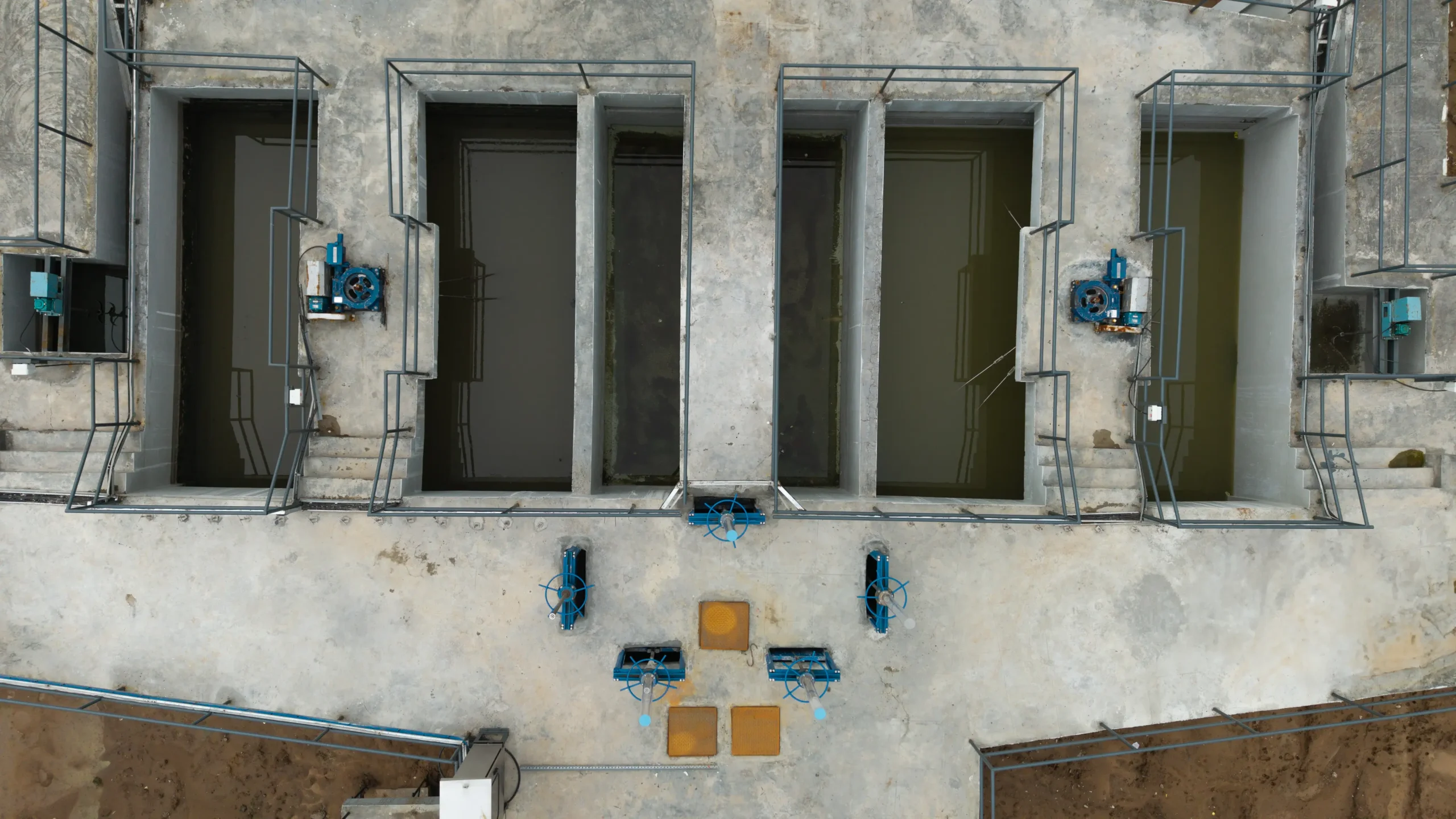

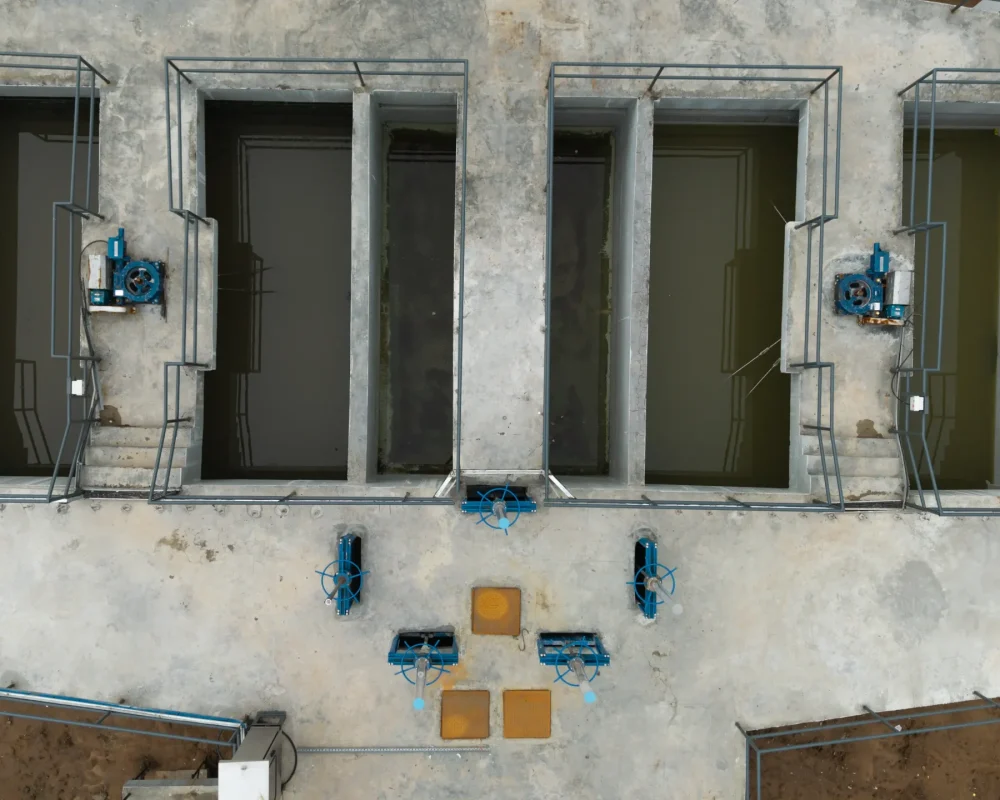

The Apollo Grit Removal Mechanism is an engineered system designed to extract heavy inorganic particles—such as sand, silt, gravel, eggshells, ash, bone chips, and other mineral solids—from municipal and industrial wastewater.
By reducing flow velocity inside a circular grit chamber, the system ensures that denser particles settle at the bottom while lighter organic matter remains suspended. This prevents abrasion, clogging, and premature wear of downstream equipment such as pumps, blowers, and mechanical components, thereby improving the overall efficiency and reliability of the treatment process.
With robust construction, continuous operation, and minimal maintenance needs, the Apollo Grit Removal Mechanism is ideal for plants with high grit loads and demanding operating conditions.
| Parameter | Specification |
|---|---|
| System Type | Mechanized circular grit removal system |
| Design | Circular (vortex-type) grit chamber |
| Flow Handling Range | 5 MLD to 500 MLD |
| Drive Mechanism | Heavy-duty motor with gear reducer |
| Grit Collection | Detritor assembly |
| Grit Discharge | Stainless steel screw conveyor |
| Material of Construction | MS epoxy-painted / SS304 / SS316 |
| Operation Mode | Continuous |
| Additional Components | Organic return pump (optional / standard as per design) |
| Recommended Location | Primary treatment zone of WWTP |
| Key Features | Benefits |
|---|---|
| Robust construction with SS304 / SS316 components | Excellent corrosion resistance ensuring long service life in harsh environments |
| Energy-efficient motors with variable speed drives | Provides precise process control while reducing power consumption |
| Optimized impeller design | Ensures uniform mixing with reduced shear for process efficiency |
| Modular design | Allows easy installation, inspection, and low-maintenance operation |
| Customizable shaft lengths and impeller sizes | Can be tailored to suit different tank dimensions and application requirements |
