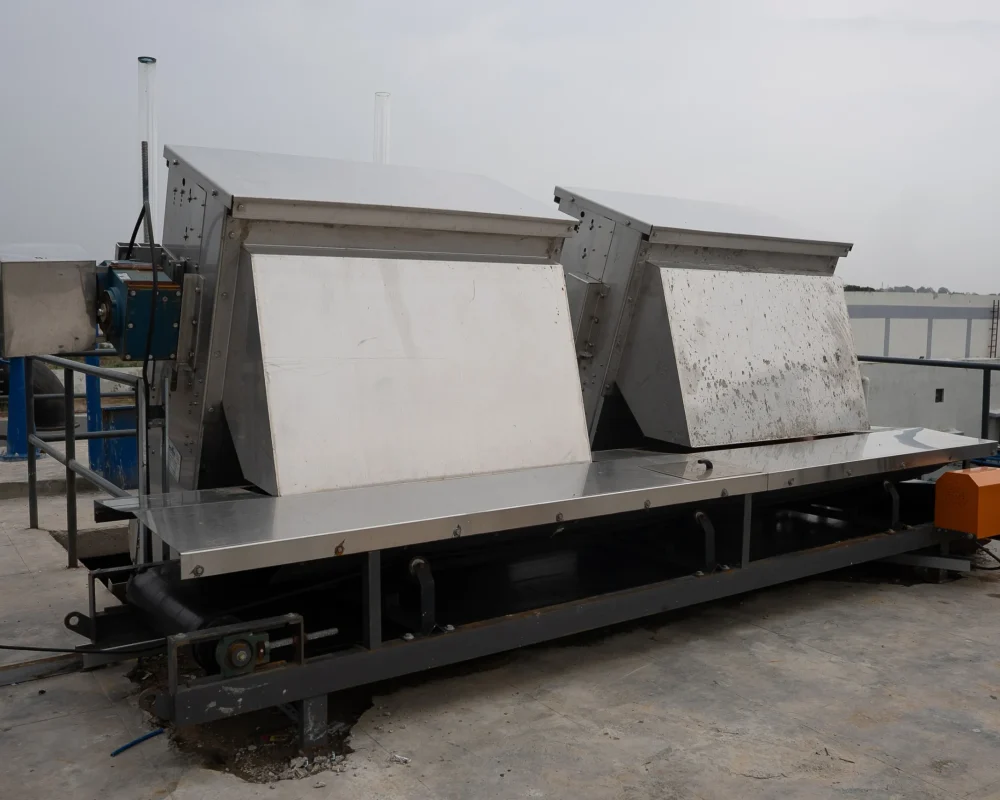

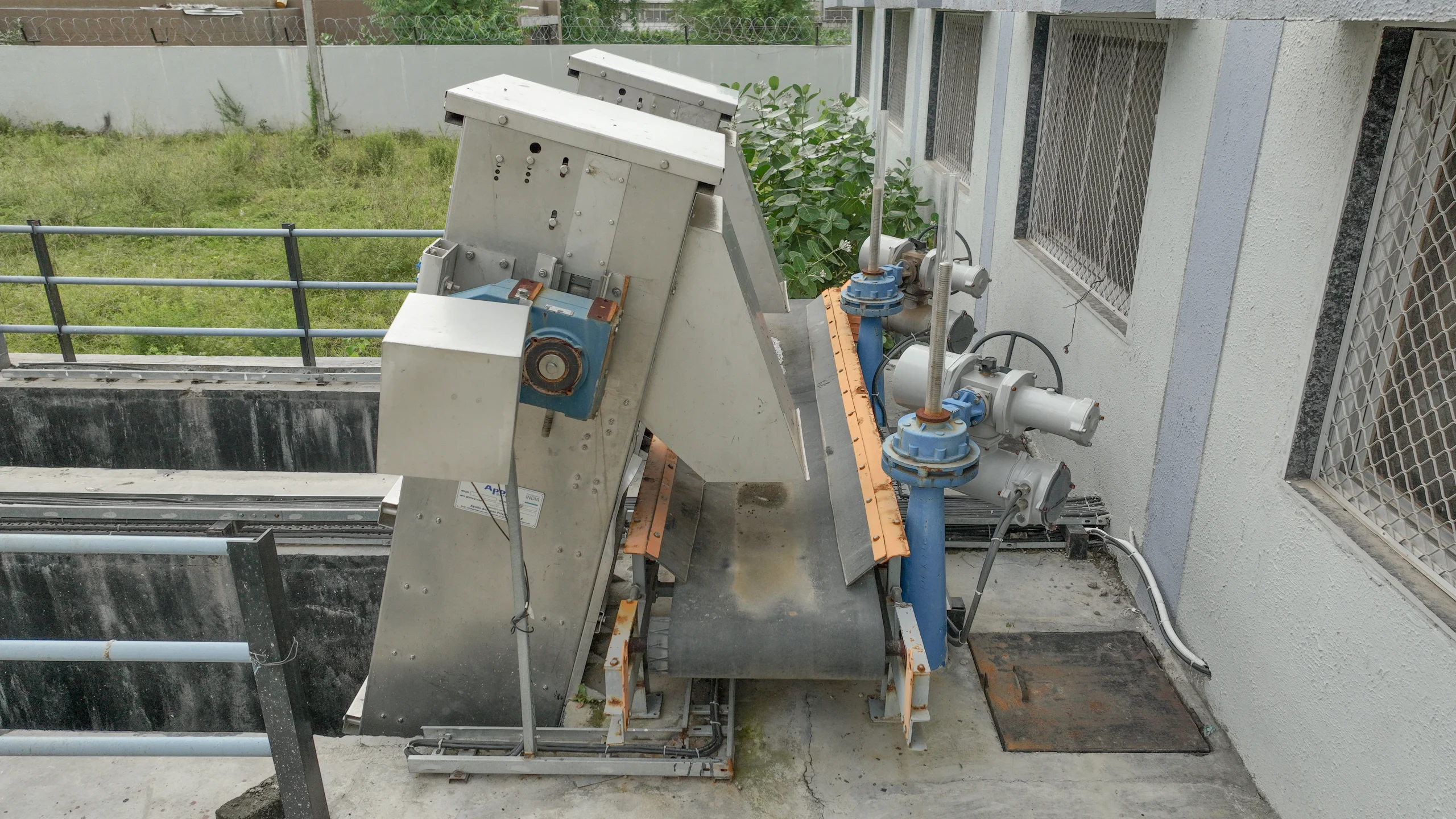

The Apollo Flat Belt Conveyor System is a heavy-duty, reliable solution for transporting screenings, debris, and solid waste from mechanical screens to designated disposal points. Designed for STPs, ETPs, and industrial wastewater plants, it ensures seamless transfer of materials directly from the discharge chute to collection areas. Its robust construction, customizable design, and optional safety features make it suitable for a wide range of applications, providing efficient and uninterrupted material handling.
Screenings or solid waste from mechanical screens are discharged onto the flat conveyor belt. The belt, driven by a gear motor, moves the material along the frame toward the disposal area. Side skirting prevents spillage, while tensioning systems maintain smooth operation. Optional features like a canopy (dog box) and pull cord switch enhance operator safety. Chain-type arrangements provide added strength for heavy loads, ensuring reliable conveyance under continuous operation.
| Parameter | Specification |
|---|---|
| Heavy-duty MS / SS Frame | Ensures long service life, high load-bearing capacity, and excellent structural stability |
| Durable Rubber / EPDM Belt with Side Skirting | Provides smooth material transport while preventing spillage and leakage |
| Customizable Belt Width & Length | Offers flexibility to suit different site layouts, channels, and material flow requirements |
| Gear Motor Drive (~30 RPM) | Delivers reliable, controlled, and consistent material conveyance |
| Chain-Type Arrangement | Enhances system strength and durability for handling heavy or abrasive materials |
| Integrated Tensioning System | Maintains proper belt tension for smooth, uninterrupted operation |
| Optional Safety Features | Canopy (dog box) and pull cord switch improve operator safety and compliance |
| Versatile Application Design | Suitable for municipal, industrial, food processing, and pharmaceutical plants |
| Key Features | Benefits |
|---|---|
| J-shaped bucket for debris collection | Ensures efficient and clean removal of collected screenings |
| Manual lifting with winch or pulley | Requires no power consumption, making operation highly economical |
| Vertical screen orientation | Space-saving design ideal for deep or narrow channels |
| Brass bushes and steel rollers | Provides smooth, low-friction operation and extended service life |
| Stainless-steel construction | Offers excellent corrosion resistance and long-term durability |
| Medium-duty design | Suitable for municipal and industrial wastewater applications |
| Easy installation & maintenance | Ensures minimal downtime and simplified cleaning operations |
