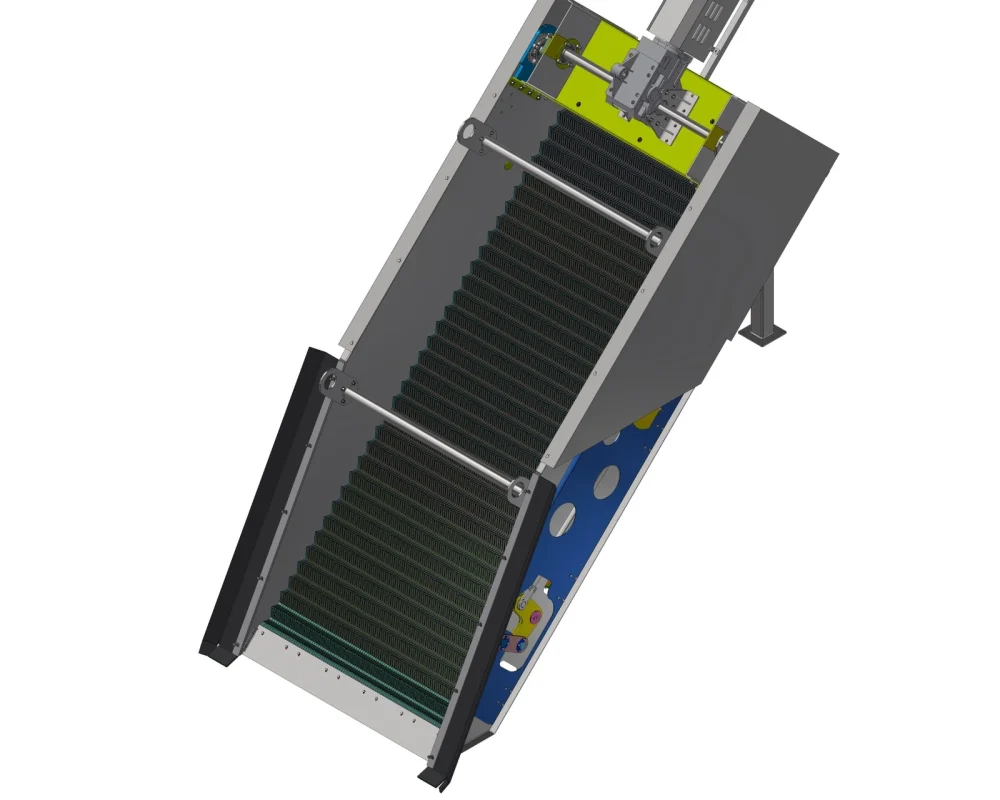

The Apollo Fine Mechanical Screen is a high-performance, precision-engineered fine screening system designed to deliver superior solids separation in both municipal and industrial wastewater treatment applications. Built with an innovative lamella bar configuration featuring alternating fixed and movable bars, the system ensures accurate fine screening with bar spacing ranging from 3 mm to 6 mm.
Installed at an optimized inclination of 45°–55°, the screen maximizes hydraulic efficiency while increasing the effective screening area. Its continuous self-cleaning action, driven by a heavy-duty gear motor, ensures uninterrupted operation without clogging—significantly reducing manual intervention and maintenance requirements.
| No. | Step | Description |
|---|---|---|
| 1 | Influent Flow | Wastewater enters the channel and passes through the inclined screening surface. |
| 2 | Solid Separation | Solids larger than the selected bar spacing are retained on the screen. |
| 3 | Lifting Mechanism | Movable bars lift solids step-by-step toward the discharge point. |
| 4 | Debris Discharge | Collected solids are discharged into a bin, belt conveyor, or screw conveyor. |
| 5 | Self-Cleaning Action | Continuous movement of mobile bars cleans the screen, preventing clogging. |
| Parameter | Specification |
|---|---|
| Bar Spacing | 3 mm to 6 mm (customizable) |
| Channel Width | 400 mm to 2000 mm |
| Installation Angle | 45° to 55° |
| Material of Construction | SS304 / SS316L |
| Drive Mechanism | Heavy-duty Gear Motor |
| Mounting Type | Channel-mounted (drop-in type) |
| Optional Accessories | Belt conveyor, screw conveyor, control panel, inlet feed box |
| Feature | Benefit |
|---|---|
| Inclined Installation (45°–55°) | Improves solids capture efficiency and increases effective screening area. |
| Unique Lamella Bar Design | Fixed and movable bars ensure precise separation and self-cleaning. |
| Fine Bar Spacing (3–6 mm) | Provides high screening accuracy and reduces load on downstream equipment. |
| Self-Cleaning Mechanism | Prevents clogging without external washing systems. |
| Deeper Bar Profile | Reduces roll-back of solids and enhances capture rate. |
| No Submerged Moving Parts | Improves reliability and minimizes corrosion. |
| Robust Construction | Designed for continuous heavy-duty operation. |
| Low Operational Costs | Minimal wear parts reduce service requirements. |
| Flexible Operation | Can run on timer or level-controlled automation. |
| Easy Installation | Bolt-down installation requiring minimal civil work. |
