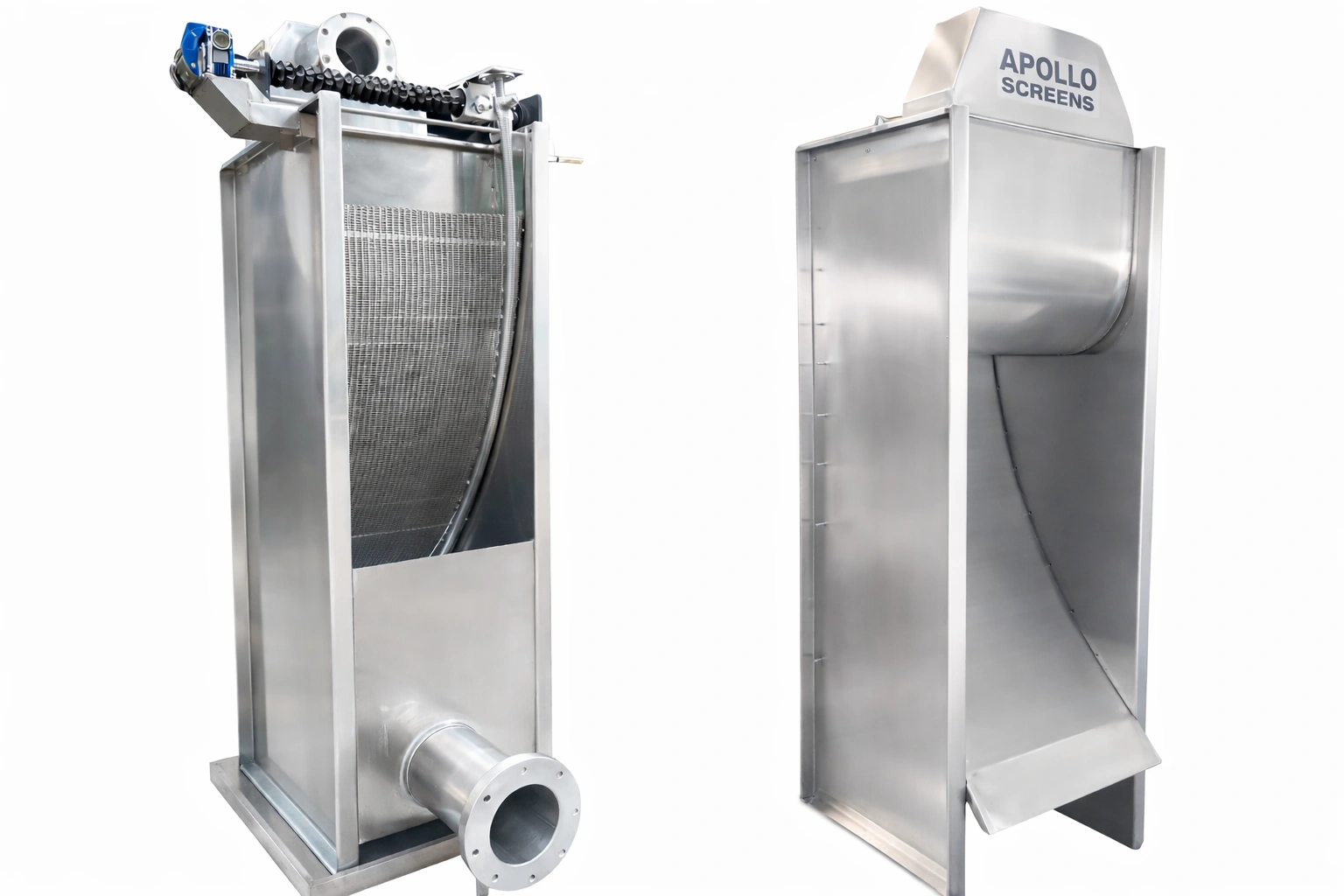

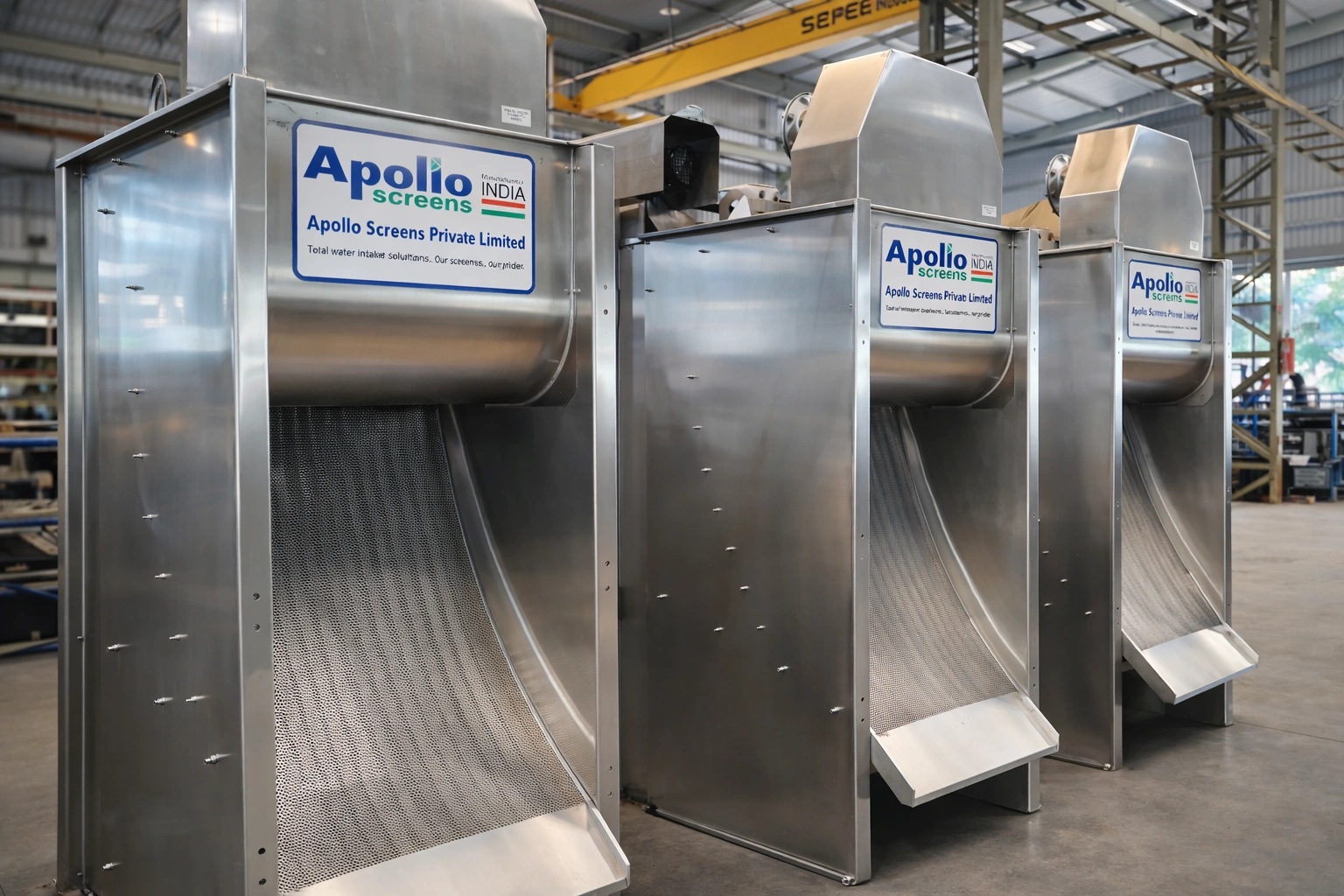

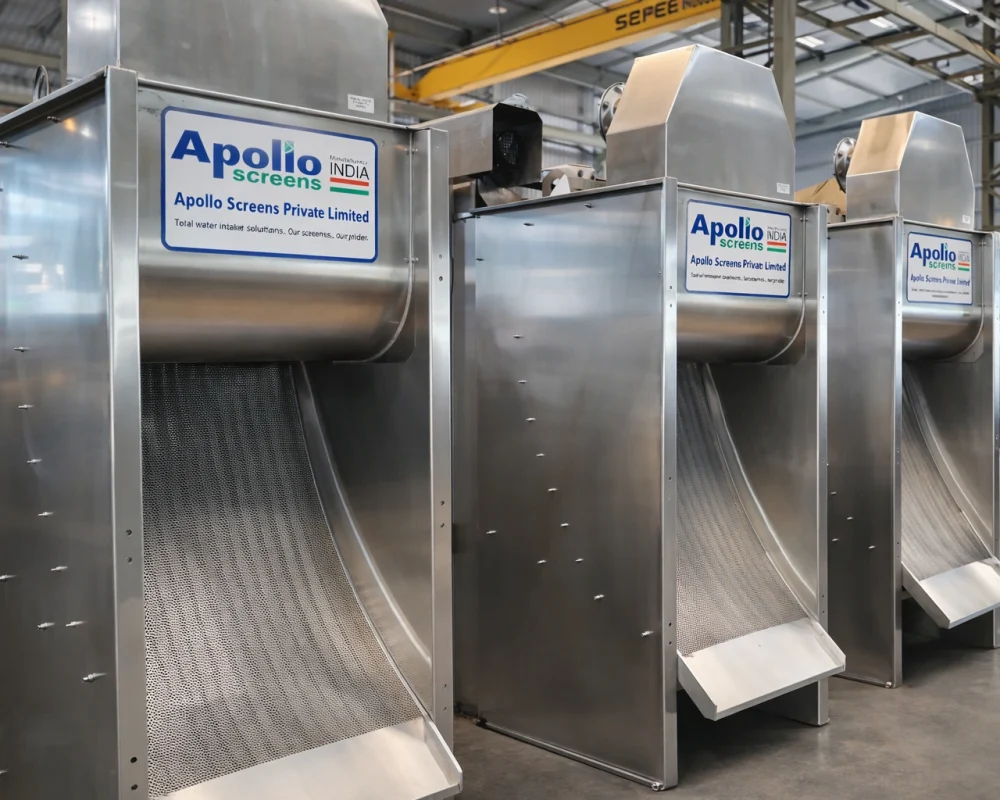

The Apollo Parabolic Screen is a high-efficiency fine screening solution designed for wastewater and industrial effluent applications that require precise solid-liquid separation. Ideal for low-flow conditions, it can remove up to 90% of suspended solids. Constructed from durable SS-304 / SS-316L, it features non-submerged moving parts and a wedge wire screen for long-term reliability, minimal maintenance, and consistent high performance.
It is suitable for small STPs, industrial effluent systems, food and dairy processing plants, chemical industries, and other processes demanding fine filtration.
| Parameter | Specification |
|---|---|
| Screen Type | Parabolic fine screen |
| Screen Slot Size | 0.5 mm (capable of fine screening) |
| Material of Construction | SS-304 / SS-316L |
| Flow Conditions | Low-flow to medium-flow streams |
| Solids Removal Efficiency | Up to 90% |
| Operation | Non-submerged moving parts; low maintenance operation |
| Installation | Bolt-down mounting with flange couplings |
| Inspection & Cleaning | Large removable rear cover for easy inspection and cleaning |
| Design Feature | Optimized parabolic shape for uniform flow distribution |
| Key Features | Benefits |
|---|---|
| Fine screening (0.5 mm) | Removes small suspended solids to achieve high-quality effluent |
| Non-submerged moving parts | Reduces corrosion and erosion, significantly increasing service life |
| Wedge wire screen | Provides high filtration rates with non-clogging slot openings |
| Efficient solids removal | Captures up to 90% of suspended solids for improved treatment performance |
| Maintenance-free construction | Durable SS-304 / SS-316L construction ensures minimal maintenance requirements |
| Optimized separation & flow | Uniform flow distribution enhances overall screening efficiency |
| Easy installation & operation | Simple bolt-down installation with convenient access for inspection and cleaning |
